Place of Origin:
China
Brand Name:
Wenyou
Certification:
CE UL ISO
Model Number:
9518
|
Liquid, non-premixed, hot-curing two component saturated epoxy resin system for outdoor applications. Applicable for both automatic pressure gelation process (APG) and vacuum casting process. High resistance to erosion under UV-radiation; good cold and thermal shock resistance; excellent environmental stress cracking resistance properties, and very high mechanical and dielectric properties |
Properties | ||||||
| Outdoor electrical insulation products for medium and high voltage applications such as insulators, embedded poles, current and voltage transformers, and etc. | Application | ||||||
| Product Data | |||||||
| LE-9518 is a modified saturated epoxy resin system. | LH-9518 is a modified weather-resistant acid anhydride hardener. | ||||||
| Properties | Unit | Value | Properties | Unit | Value | ||
| Appearance | Visual | Transparent, viscous liquid | Appearance | Visual | Transparent-light yellow liquid | ||
| Epoxy value | Eq/kg | 5.0-5.9 | Viscosity at 25℃ | mPa.s | 300-800 | ||
| Viscosity at 25℃ | mPa.s | 600-1500 | Density at 25℃ | g/cm3 | 1.17-1.24 | ||
| Density at 25℃ | g/cm3 | 1.16-1.20 | Vapour Pressure at 25℃ | Pa | About 0.5 | ||
| Vapour Pressure at 25℃ | Pa | ﹤0.01 | Flash point | ℃ | About 140 | ||
| Flash point | ℃ | About 135 | |||||
| Epoxy resin LE-9518 and hardener LH-9518 with a certain quantity of filler can be processed by following conditions after fully mixed under vacuum conditions. | Process condition | ||||||
| Processing parameters | Automatic pressure gelation | Vacuum casting |
| Epoxy / hardener mixture temperature | 40℃/1-2 hours | 60℃/1-2hours |
| Feeding process | Pressurized (0.5-5bar) | Vacuum (casting house) |
| Mold temperature | 130-150℃ | 80-100℃ |
| Gelation time | 10-30mins | 3-6 hours |
| Post cure | 130-140℃×6-10 hours | 130-140℃×6-10 hours |
| The components have to be stored in tightly sealed and dry original containers in an environment at 6~35℃;. Under these conditions, the shelf life will correspond to the expiration date stated on the label ( normally 12 months). After this date, the product may be reanalyzed to confirm if it validates yet. Partial emptied containers should be closed tightly immediately after use. | Storage |

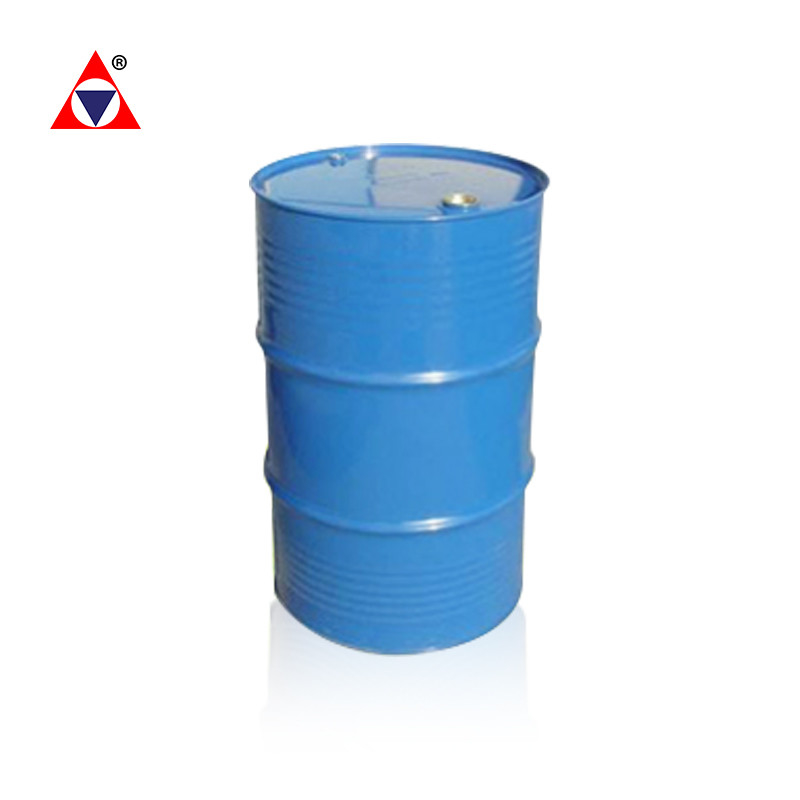

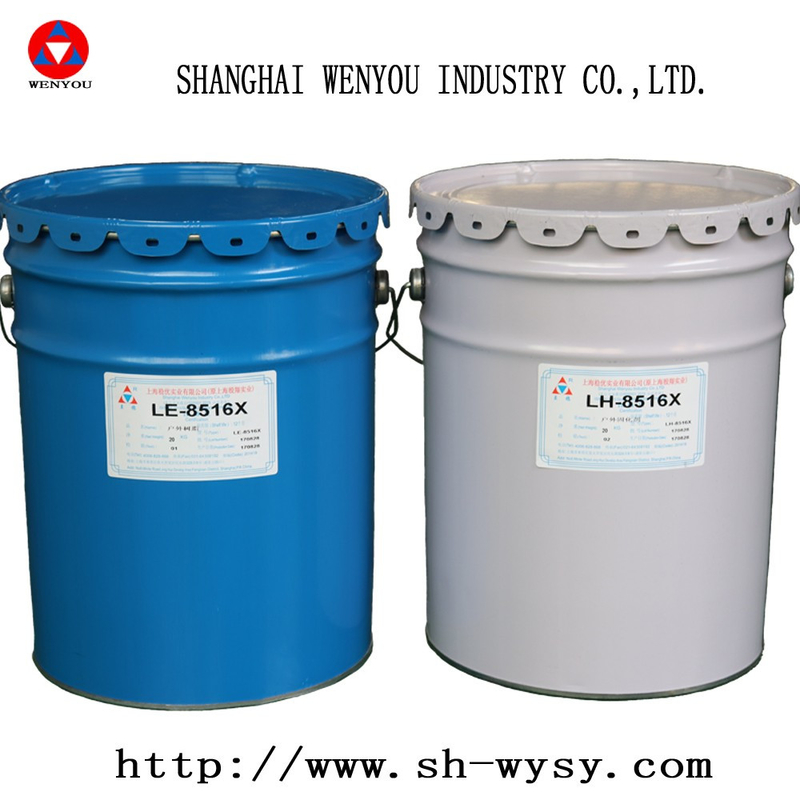

| LE-9518 20 or 220 or 1200kg/drum, LH-9518 20 or 220 or 1200kg/drum; | Packing |
| If eyes are contaminated by epoxy resin, hardener or mixture for casting, the eyes should be treated and washed immediately by clean running water for 10 to 15 minutes. If necessary, the person shall be sent to hospital. If the skin is stained or splashed by the materials, it shall be wiped immediately and washed off by clean water. If the person feels very hurt or burn wounds, he or she shall be sent to hospital immediately. If the clothes are Contaminated, the people shall change the suits immediately. If the operator breathes in the vapour and feel bad, he or she shall be moved to outside. Any other doubt, please consult doctors or us for medical assistance. | First aid |
