Transforming Epoxy Resin Volume Resistivity 1015 Ω.cm Sample Curing Conditions 10h 140C

Transforming Epoxy Resin Volume Resistivity 1015 Ω.cm Sample Curing Conditions 10h 140C

10h 140C Epoxy Resin

Sample Curing Conditions Epoxy Resin

1015 Ω.cm Epoxy Resin

Place of Origin:

CHINA

Brand Name:

WENYOU

Certification:

CE UL ISO

Model Number:

8216F

Contact Us
Request A Quote
Product Details
Shelf Time:
12 Months
Product Category:
Transformer Epoxy Resin
Compound:
2
Flame Retardancy:
High
Water Absorption(100℃×60 Mins):
0.08-0.15 %by Wt.
Dielectric Strength:
20-30 KV/mm
Cure Shrinkage:
0.8-1.0%
Payment & Shipping Terms
Minimum Order Quantity
50
Price
negotiable

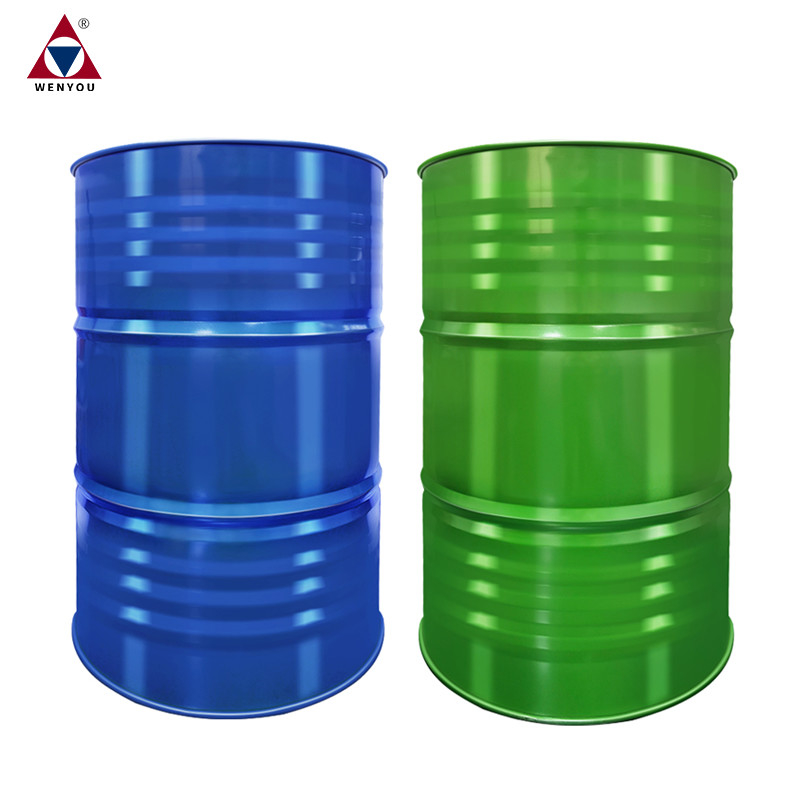

Packaging Details
1000KG/220KG/200KG/20KG
Delivery Time
7 work days
Payment Terms
L/C, T/T
Supply Ability
1800 Ton/Tons per Month
Product Description

Product Description:

The Transformer Epoxy Resin is a two-component system that is designed to provide exceptional performance in a variety of applications. This high-quality epoxy resin is ideal for use in the electrical and electronics industries, where flame retardancy is a critical requirement.

When cured according to the recommended sample curing conditions, which are 10 hours at 140℃, this epoxy compound exhibits a flexural strength of 100-130N/ mm2. This makes it an excellent choice for applications that require high mechanical strength.

In addition to its excellent mechanical properties, the Transformer Epoxy Resin also offers exceptional flame retardancy. This is due to the unique chemical composition of the resin, which is designed to inhibit the spread of flames and prevent the ignition of combustible materials.

The Transformer Epoxy Resin is an ideal choice for a wide range of applications, including the manufacture of electrical transformers, switchgear, and other electrical components. Its high flame retardancy and exceptional mechanical properties make it a reliable and long-lasting choice for these critical applications.


Features:

  • Product Name: Transformer Epoxy Resin
  • Compound: 2
  • Product Category: Transformer Epoxy Resin
  • Dielectric Strength: 20-30 kV/mm
  • Cure Shrinkage: 0.8-1.0%
  • Storage: 6~35℃

Transform into a new level of bonding with the Metamorphosis Epoxy Adhesive, experience the Mutation Epoxy Resin to achieve the ultimate strength, and witness the Evolution Epoxy Compound to enhance your projects to the next level.


Technical Parameters:

Product Category Transformer Epoxy Resin
Tg.(DSC) 60-80℃
Flame Retardancy High
Storage 6~35℃
Shelf Time 12 Months
Dielectric Strength 20-30 kV/mm
Flexural Strength 100-130N/ mm2
Water absorption(100℃×60 mins) 0.08-0.15 %by wt.
Volume resistivity 1015 Ω.cm
Electrical Insulation Good

Applications:

The Transformer Epoxy Resin is perfect for use in a wide range of applications, including insulators and transformers. This product is certified by CE UL ISO, ensuring that it meets all relevant safety and quality standards. It is made in China and is available for a negotiable price with a minimum order quantity of 50.

The cure shrinkage of this product is 0.8-1.0%, while its water absorption rate at 100℃×60 mins is 0.08-0.15% by weight. Its Tg.(DSC) range is 60-80℃, making it suitable for use in a variety of environments.

The WENYOU 8216F Transformer Epoxy Resin is a metamorphosis epoxy adhesive that is supplied in packaging sizes of 1000KG/220KG/200KG/20KG. The product has a supply ability of 1800 Ton/Tons per Month and can be delivered within 7 work days. Payment terms include L/C and T/T.

The Transformer Epoxy Resin is ideal for use in outdoor electrical insulation products for medium and high voltage applications, where it provides excellent insulation properties and high flame retardancy. Whether you are looking to insulate transformers, insulators or any other electrical component, this product is designed to meet your needs.


Support and Services:

Our Transformer Epoxy Resin product is designed to provide excellent insulation and protection for electrical components in transformers. Our technical support team is available to assist with any questions regarding the product's properties, application, and performance. Additionally, we offer a range of services to ensure optimal performance of the product, including installation guidance, troubleshooting support, and maintenance recommendations. Contact us to learn more about our technical support and services for our Transformer Epoxy Resin.


Packing and Shipping:

Product Packaging:

  • The transformer epoxy resin is packed in a sturdy, leak-proof container to prevent any spillage during transport.
  • The container is labeled with the product name, quantity, manufacturing date, and expiration date.
  • The packaging also includes an MSDS (Material Safety Data Sheet) for safety information and handling instructions.

Shipping:

  • We ship the transformer epoxy resin via a reputable carrier to ensure timely and safe delivery.
  • Before shipping, we carefully inspect the packaging to ensure it meets the necessary safety standards.
  • We provide a tracking number to the customer so they can track the delivery of their order.
  • Shipping rates and delivery times vary depending on the customer's location and shipping preferences.

FAQ:

Q: What is the brand name of this Transformer Epoxy Resin product?

A: The brand name of this product is WENYOU.

Q: What is the model number of this Transformer Epoxy Resin product?

A: The model number of this product is 8216F.

Q: What certifications does this Transformer Epoxy Resin product have?

A: This product has CE, UL, and ISO certifications.

Q: What is the minimum order quantity for this Transformer Epoxy Resin product?

A: The minimum order quantity for this product is 50.

Q: What are the payment terms for this Transformer Epoxy Resin product?

A: The payment terms for this product are L/C and T/T.
