Place of Origin:
China
Brand Name:
wenyou
Certification:
ISO9001, ISO14001, SGS, and UL
Model Number:
8216F
Document:
Video
Video
Brief Introduction
Dry - type Transformer Epoxy Resin cheap liquid Epoxy Resin hardener
LE-8216F is a modified saturated cyclic aliphatic epoxy resin system.
LH-8216F is a modified weather-resistant anhydride hardener.
Applications
Electrical insulators for medium and high voltage applications, such as dry-type transformers, 10-66KV current transformers, voltage transformers, and other related products.
Processing Methods
Conventional gravity casting process under vacuum. Production process is adjustable according to client’s present production methods.
Properties
Two-component saturated cyclic epoxy resin system without pre-mixed fillers, liquid at room temperature. Low curing shrinkage, good dimensional stability of the parts, excellent processing performance, and superior mechanical and electrical properties.
Formulation
| Epoxy resin | LE-8216F | 100 pbw |
| Hardener | LH-8216F | 100 pbw |
| Filler | Silica Powder | 300-360 pbw |
| Color paste | LC series * | Appropriate |

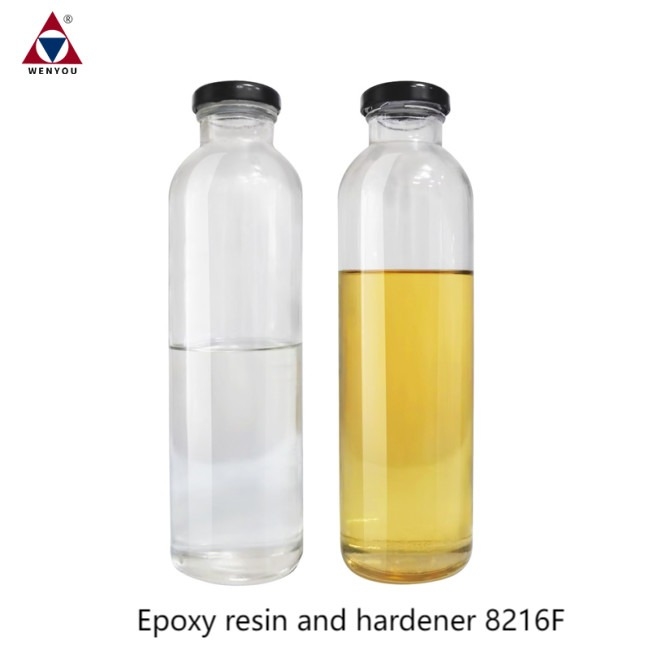

Package Image
Example application image
