Place of Origin:
China
Brand Name:
wenyou
Certification:
ISO9001, ISO14001, SGS, and UL
Model Number:
9216F
Document:
Brief Introduction
Indoor electrical insulator Epoxy Resin and hardener APG raw material
LE-9216F is a modified BPA (bisphenol A) type epoxy resin.
LH-9216Fis a liquid modified carboxylic anhydride hardener.
Applications
Indoor electrical insulators for medium and high voltage applications, such as insulators, transformers, and other insulation products.
Processing Methods
Conventional gravity casting process under vacuum.
Automatic pressure gelation process (APG).
Production process is adjustable according to client’s present production methods.
Properties
Two-component saturated cyclic epoxy resin system without pre-mixed fillers, liquid at room temperature. Excellent resistance to thermal shock, superior environmental resistance, and superior mechanical and dielectric properties.
Formulation
| Epoxy resin | LE-9216F | 100 pbw |
| Hardener | LH-9216F | 100 pbw |
| Filler | Silica Powder | 300-370 pbw |
| Color paste | LC series * |
3 pbw |

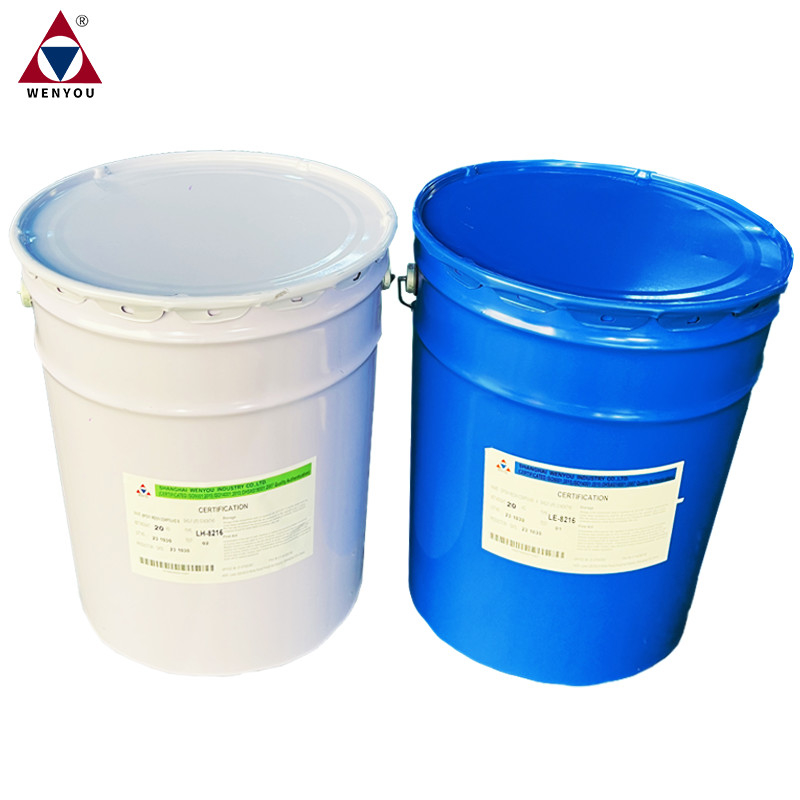

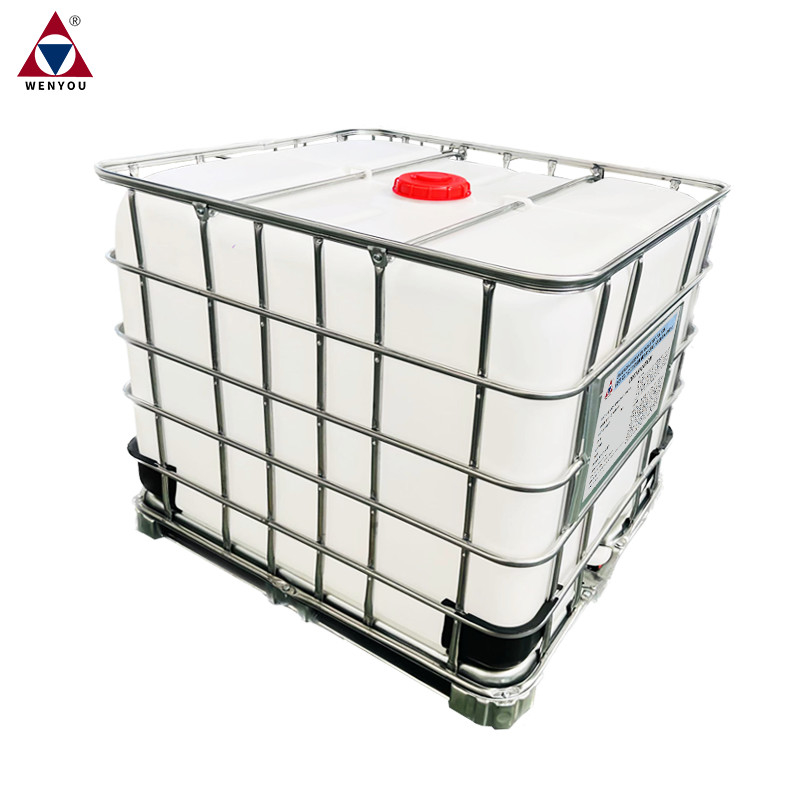

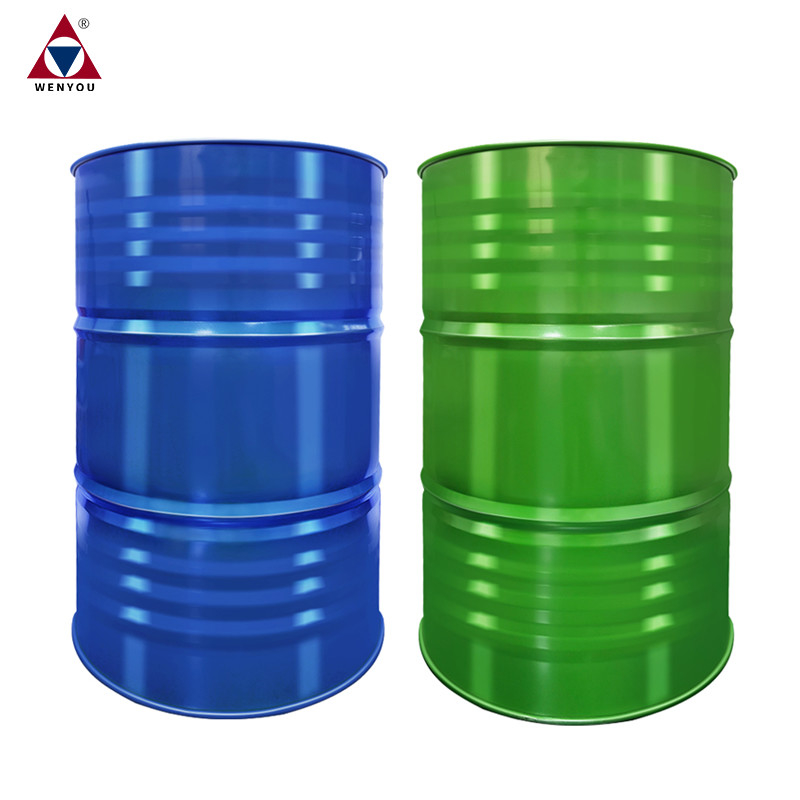

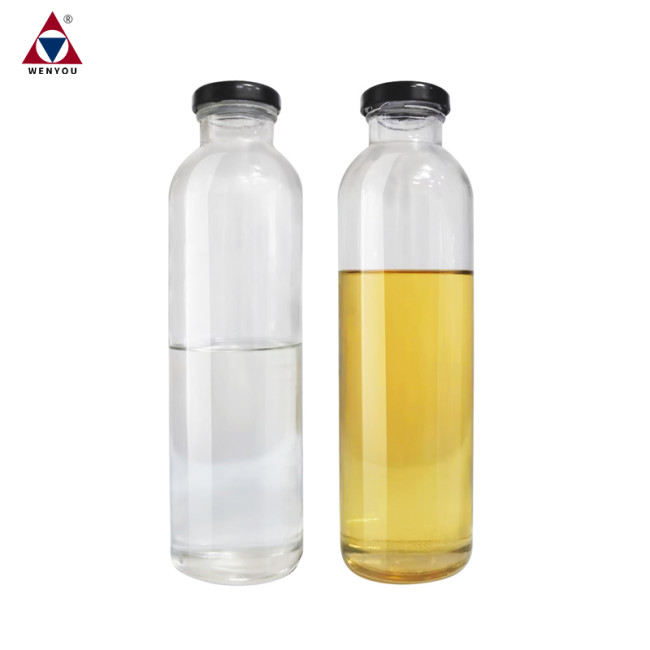

Package Image

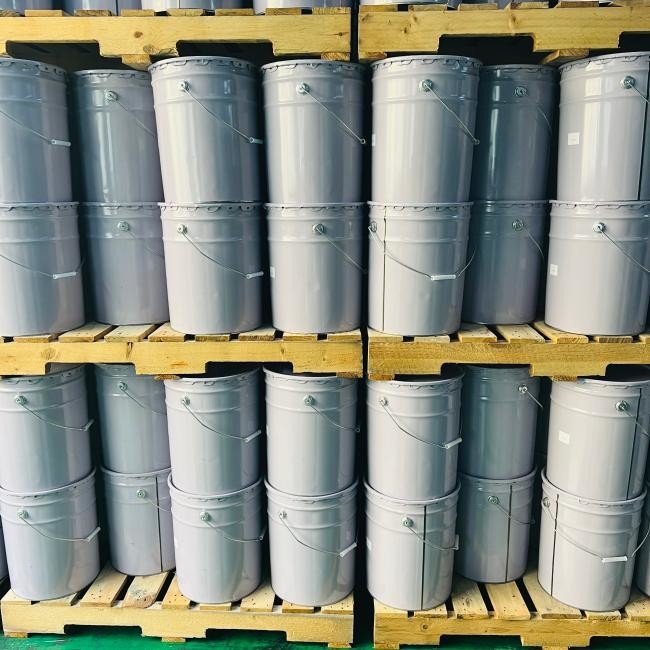

Shipment Image

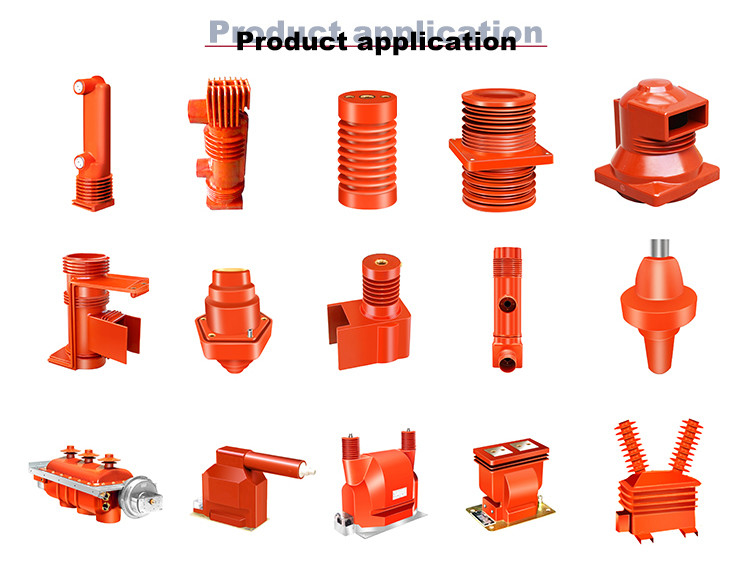

Example application image
