Place of Origin:
China
Brand Name:
wenyou
Certification:
ISO9001, ISO14001, SGS, and UL
Model Number:
8224G
Document:
Brief Introduction
Injection epoxy resin for 10 - 35 kv cabinet switches insulation components
LE-8224G is a modified PBA type epoxy resin containing fillers.
LH-8224G is a modified carboxylic acid anhydride curing agent containing fillers.
Attention: It’s necessary to mix the individual components evenly before use.
Applications
Insulation components for medium and high voltage cabinet switches.
Such as 10-35kV insulation components.
(High-temperature endurance and crack resistance)
Processing Methods
Conventional gravity casting process under vacuum.
Automatic pressure gelation process (APG).
Production process is adjustable according to client’s present production methods.
Properties
Good mechanical and electrical properties
Good crack resistance
Very good high temperature endurance properties
Very good thermal endurance properties
Formulation
| Epoxy resin | LE-8224G | 100 pbw |
| Hardener | LH-8224G | 100 pbw |
| Color paste | LC series * | 1 pbw |

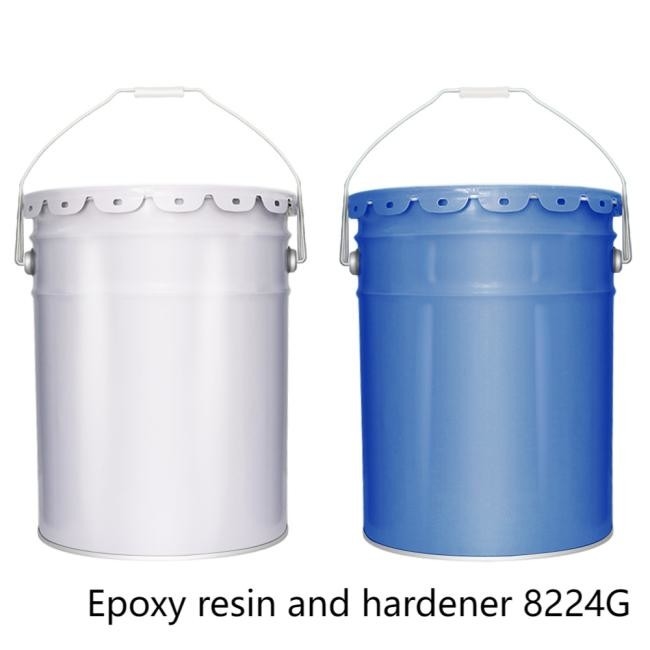

Package Image
Example application image
