Transformer Mold Resin Hardener 10 - 35 KV Sealed Terminal Post Adhesives

Transformer Mold Resin Hardener 10 - 35 KV Sealed Terminal Post Adhesives

Transformer mold resin hardener

35KV Transformer Mold Resin Hardener

Place of Origin:

China

Brand Name:

wenyou

Certification:

ISO9001, ISO14001, SGS, and UL

Model Number:

8229A

Document:

LW-8229A LW-8229B System.pdf

Contact Us
Request A Quote
Transformer Mold Resin Hardener 10 - 35 KV Sealed Terminal Post Adhesives
Transformer Mold Resin Hardener 10 - 35 KV Sealed Terminal Post Adhesives
Product Details
Classification:
Double Components Adhesives
Usage:
10-35kV Sealed Terminal Posts, Transformers, Current Transformers, And Other Insulation Components.
Application:
Electrical Insulators For Medium And High Voltage Applications.
Appearance Of Epoxy Resin:
Milky White Viscous Liquid
Appearance Of Hardener:
Light Yellow Liquid
Viscosity At 25°C:
10000 - 20000mPa.s
Density At 25°C:
1.55 - 1.70g/cm3
Vapor Pressure At 25°C:
≤ 0.01Pa
Flash Point:
Around 135°C
Description:
Transformer Mold Resin Hardener 10 - 35 KV Sealed Terminal Post Adhesives
Payment & Shipping Terms
Minimum Order Quantity
20kg/pail as sample
Price
Negotiable
Packaging Details
20kg/pail, 220kg/barrel, 1200kg/tank
Delivery Time
7 -10 work days
Payment Terms
Normally L/C, T/T
Supply Ability
Plenty of raw material in stock
RELATED PRODUCTS
Good price High Elongation And 0.8-0.9 W / Mk Thermal Conductivity In EE Core Series Transformer online Video

High Elongation And 0.8-0.9 W / Mk Thermal Conductivity In EE Core Series Transformer

Get Best Price
Good price Smooth Surface Transformer Raw Material With HB Class Flammability And Good Impact Resistance online Video

Smooth Surface Transformer Raw Material With HB Class Flammability And Good Impact Resistance

Get Best Price
Good price Excellent Corrosion Resistance And High Dielectric Strength Of 20-30kV / Mm Transformer Insulation Material For Your online Video

Excellent Corrosion Resistance And High Dielectric Strength Of 20-30kV / Mm Transformer Insulation Material For Your

Get Best Price
Good price Epoxy ER Core Series Transformer with 50-60°C Mixture Temperature and 200-500 Viscosity online Video

Epoxy ER Core Series Transformer with 50-60°C Mixture Temperature and 200-500 Viscosity

Get Best Price
Contact Us
86-21-64308192
Contact Now
Product Description

Brief Introduction



Transformer mold resin hardener 10 - 35 kV sealed terminal post adhesives
LW - 8229A is a modified PBA type epoxy resin containing fillers.
LW - 8229B is a modified carboxylic acid anhydride curing agent containing fillers.



Applications



Electrical insulators for medium and high voltage applications.
Such as:10 - 35kV sealed terminal posts, transformers, current transformers, and other insulation components.


Processing Methods



Conventional gravity casting process under vacuum.
Automatic pressure gelation process (APG).
Production process is adjustable according to client’s present production
methods.



Properties



Two-component saturated cyclic epoxy resin system with pre-mixed fillers, slurry liquid at room temperature.
Excellent resistance to thermal shock with superior crack resistance.



Formulation



Epoxy resin LW - 8229A 100 pbw
Hardener LW - 8229B 100 pbw
Color paste LC series * 1 pbw



Note: The components needs to be mixed evenly before use.

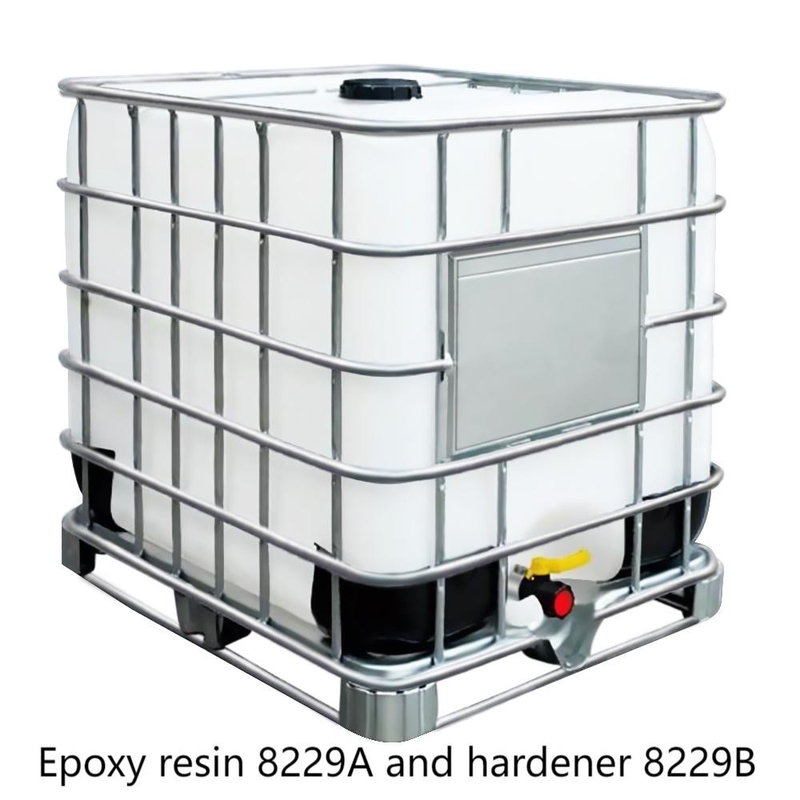

Package Image



Transformer Mold Resin Hardener 10 - 35 KV Sealed Terminal Post Adhesives 0



Example application image



Transformer Mold Resin Hardener 10 - 35 KV Sealed Terminal Post Adhesives 1
