Transformer Bushing Epoxy Resin Indoor Electrical Insulators Adhesives & Sealants

Transformer Bushing Epoxy Resin Indoor Electrical Insulators Adhesives & Sealants

Indoor electrical insulators adhesives

Indoor electrical insulators sealants

Indoor electrical insulators epoxy resin

Place of Origin:

China

Brand Name:

wenyou

Certification:

ISO9001, ISO14001, SGS, and UL

Model Number:

9204

Document:

LE-9204 LH-9204 LF-630 LZ-6...em.pdf

Contact Us
Request A Quote
Transformer Bushing Epoxy Resin Indoor Electrical Insulators Adhesives & Sealants
Transformer Bushing Epoxy Resin Indoor Electrical Insulators Adhesives & Sealants Transformer Bushing Epoxy Resin Indoor Electrical Insulators Adhesives & Sealants Transformer Bushing Epoxy Resin Indoor Electrical Insulators Adhesives & Sealants Transformer Bushing Epoxy Resin Indoor Electrical Insulators Adhesives & Sealants Transformer Bushing Epoxy Resin Indoor Electrical Insulators Adhesives & Sealants Transformer Bushing Epoxy Resin Indoor Electrical Insulators Adhesives & Sealants
Product Details
Classification:
Double Components Adhesives
Usage:
Bushings, Switchgears,dry-type Transformers, And Other Insulation Products.
Application:
Indoor Electrical Insulators For Medium And High Voltage Applications
Viscosity At 25°C:
5000 - 7000mPa.s
Density At 25°C:
1.13 - 1.18g/cm3
Vapor Pressure At 25°C:
≤ 0.01Pa
Flash Point:
Around 130°C
Epoxy Value:
5.0 - 5.4Eq/kg
Description:
Transformer Bushing Epoxy Resin Indoor Electrical Insulators Adhesives & Sealants
Payment & Shipping Terms
Minimum Order Quantity
20kg/pail as sample
Price
Negotiable
Packaging Details
20kg/pail, 220kg/barrel, 1200kg/tank
Delivery Time
7 -10 work days
Payment Terms
Normally L/C, T/T
Supply Ability
Plenty of raw material in stock
RELATED PRODUCTS
Good price Indoor electrical insulator potting compound two component epoxy resin liquid online Video

Indoor electrical insulator potting compound two component epoxy resin liquid

Get Best Price
Good price epoxy resin and curing agent for vacuum casting Indoor composite transformer online Video

epoxy resin and curing agent for vacuum casting Indoor composite transformer

Get Best Price
Good price Thermally conductive epoxy adhesive electric power protect resin insulate online Video

Thermally conductive epoxy adhesive electric power protect resin insulate

Get Best Price
Good price Power industry top sells insulation epoxy resin for high voltage insulators online Video

Power industry top sells insulation epoxy resin for high voltage insulators

Get Best Price
Contact Us
86-21-64308192
Contact Now
Product Description



Brief Introduction



Transformer bushing epoxy resin Indoor electrical insulators adhesives & sealants
LE-9204 is a liquid modified BPA type epoxy resin.
LH-9204 is a liquid modified carboxylic acid anhydride curing agent.
LF-630 is a low viscosity solvent-free modified polyol.
LZ-622 is a modified tertiary amine accelerator.



Applications



Indoor electrical insulators for medium and high voltage applications, such as bushings, switchgears,dry-type transformers, and other insulation products.



Processing Methods



Conventional gravity casting process under vacuum.
Automatic pressure gelation process (APG).



Properties



Excellent resistance to thermal shock, superior mechanical and dielectric properties.



Formulation



Epoxy resin LE-9204 100 pbw
Hardener LH-9204 85 pbw
Flexibilizer
 LF-630 0-20 pbw
Accelerator
 LZ-622 0.2-1.5 pbw
Filler Silica Powder 320-390 pbw
Color paste LC series *

3 pbw

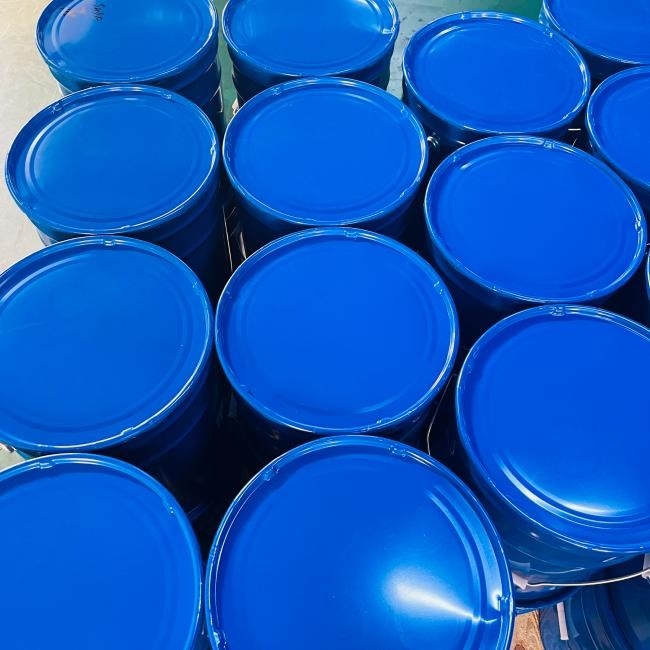

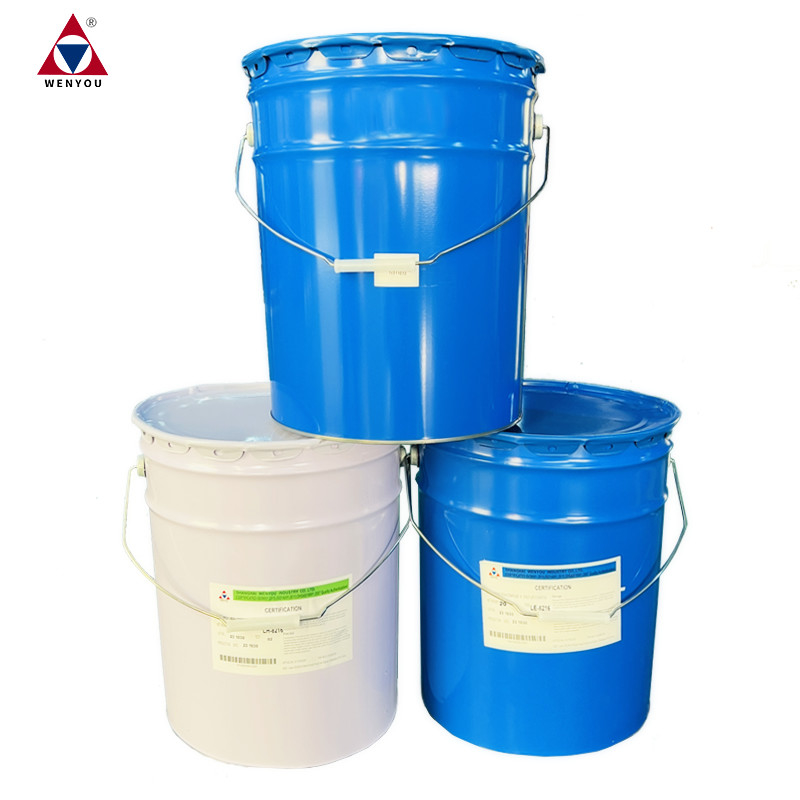

Package Image



Transformer Bushing Epoxy Resin Indoor Electrical Insulators Adhesives & Sealants 0

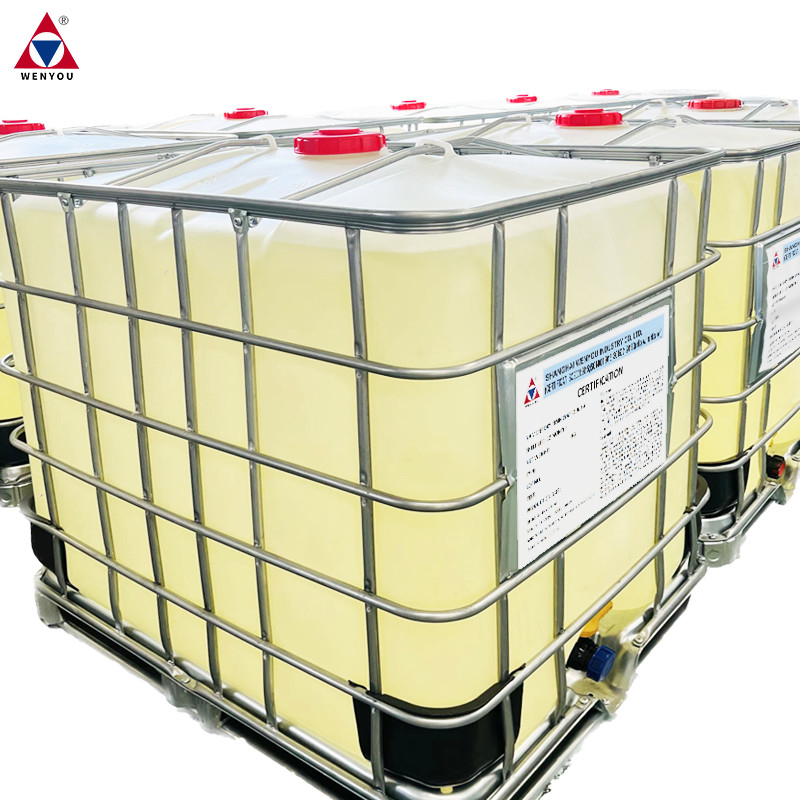

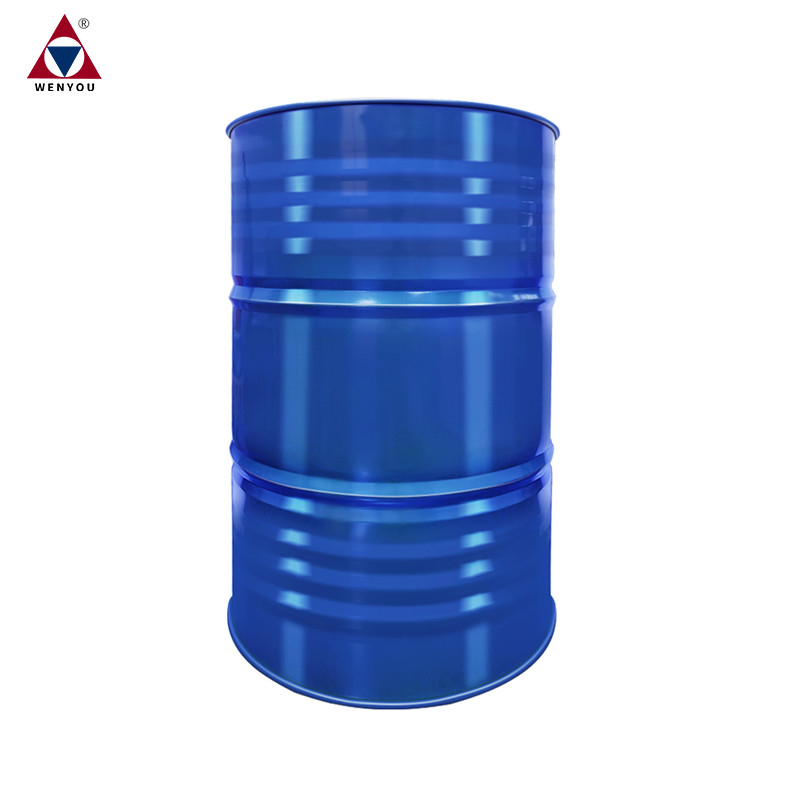

Shipment image



Transformer Bushing Epoxy Resin Indoor Electrical Insulators Adhesives & Sealants 1

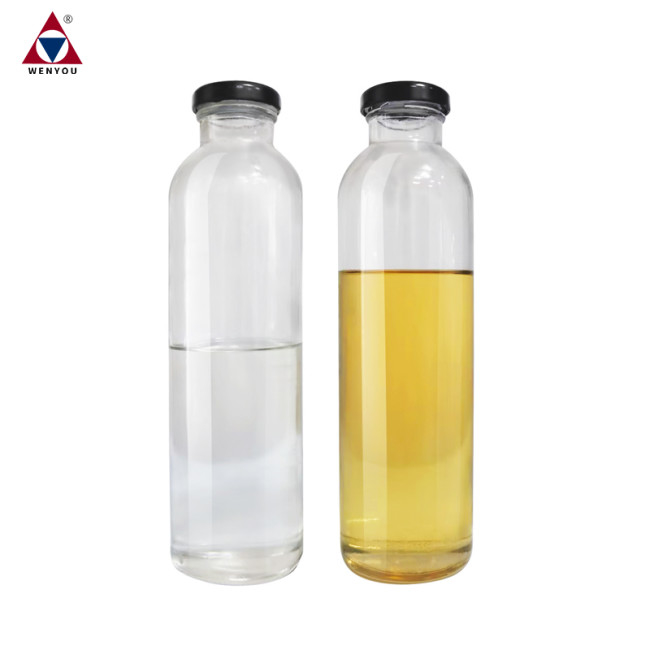

Example application image





Transformer Bushing Epoxy Resin Indoor Electrical Insulators Adhesives & Sealants 2
