Outdoor Epoxy Resin Raw Material Apply To Contact Box / Insulators / Bushings

Outdoor Epoxy Resin Raw Material Apply To Contact Box / Insulators / Bushings

Outdoor epoxy resin raw material

Epoxy Resin Raw Material

Place of Origin:

China

Brand Name:

wenyou

Certification:

ISO9001, ISO14001, SGS, and UL

Model Number:

9265

Document:

LE-9265 LH-9265 WY-12X Syst...em.pdf

Contact Us
Request A Quote
Outdoor Epoxy Resin Raw Material Apply To Contact Box / Insulators / Bushings
Outdoor Epoxy Resin Raw Material Apply To Contact Box / Insulators / Bushings Outdoor Epoxy Resin Raw Material Apply To Contact Box / Insulators / Bushings Outdoor Epoxy Resin Raw Material Apply To Contact Box / Insulators / Bushings Outdoor Epoxy Resin Raw Material Apply To Contact Box / Insulators / Bushings Outdoor Epoxy Resin Raw Material Apply To Contact Box / Insulators / Bushings Outdoor Epoxy Resin Raw Material Apply To Contact Box / Insulators / Bushings
Product Details
Classification:
Double Components Adhesives
Usage:
12kV-40.5kV Contact Boxes, Insulators, Bushings, And Other Insulation Products.
Application:
Outdoor Electrical Insulators For Medium And High Voltage Applications
Appearance Of Epoxy Resin:
Transparent Viscous Liquid
Appearance Of Hardener:
Light Yellow Transparent Liquid
Viscosity At 25°C:
7500 - 13500mPa.s
Density At 25°C:
1.16 - 1.20g/cm3
Vapor Pressure At 25°C:
＜ 0.01Pa
Flash Point:
Around 135°C
Description:
Outdoor Epoxy Resin Raw Material Apply To Contact Box / Insulators / Bushings
Epoxy Value:
5.1 - 5.5Eq/kg
Payment & Shipping Terms
Minimum Order Quantity
20kg/pail as sample
Price
Negotiable
Packaging Details
20kg/pail, 220kg/barrel, 1200kg/tank
Delivery Time
7 -10 work days
Payment Terms
Normally L/C, T/T
Supply Ability
Plenty of raw material in stock
RELATED PRODUCTS
Good price Electronic insulators fast curing epoxy hardener vacuum casting resin online Video

Electronic insulators fast curing epoxy hardener vacuum casting resin

Get Best Price
Good price Huntsman epoxy resin alternative economical material with high quality online Video

Huntsman epoxy resin alternative economical material with high quality

Get Best Price
Good price Epoxy resin with curing agent to produce power industrial CT PT transformer insulator bushing online Video

Epoxy resin with curing agent to produce power industrial CT PT transformer insulator bushing

Get Best Price
Good price China Supplier Fast Delivery Reasonable Price Epoxy Resin Hardeners For APG Process online Video

China Supplier Fast Delivery Reasonable Price Epoxy Resin Hardeners For APG Process

Get Best Price
Contact Us
86-21-64308192
Contact Now
Product Description

Brief Introduction



Outdoor epoxy resin raw material apply to contact box / insulators / bushings

LE-9265 is a modified saturated cyclic aliphatic epoxy resin system.
LH-9265 is a modified weather-resistant anhydride hardener.



Applications



Outdoor electrical insulators for medium and high voltage applications, such as 12kV-40.5kV contact boxes, insulators, bushings, and other insulation products.



Processing Methods



Conventional gravity casting process under vacuum.
Automatic pressure gelation process (APG).
Production process is adjustable according to client’s present production methods.



Properties



Two-component saturated cyclic epoxy resin system without pre-mixed fillers, liquid at room temperature.
Excellent resistance to thermal shock, superior environmental resistance, and superior mechanical and dielectric properties.


Formulation



Epoxy resin LE-9265 100 pbw
Hardener LH-9265 100 pbw
Filler WY-12X 250-270 pbw
Color paste LC series * 3 pbw

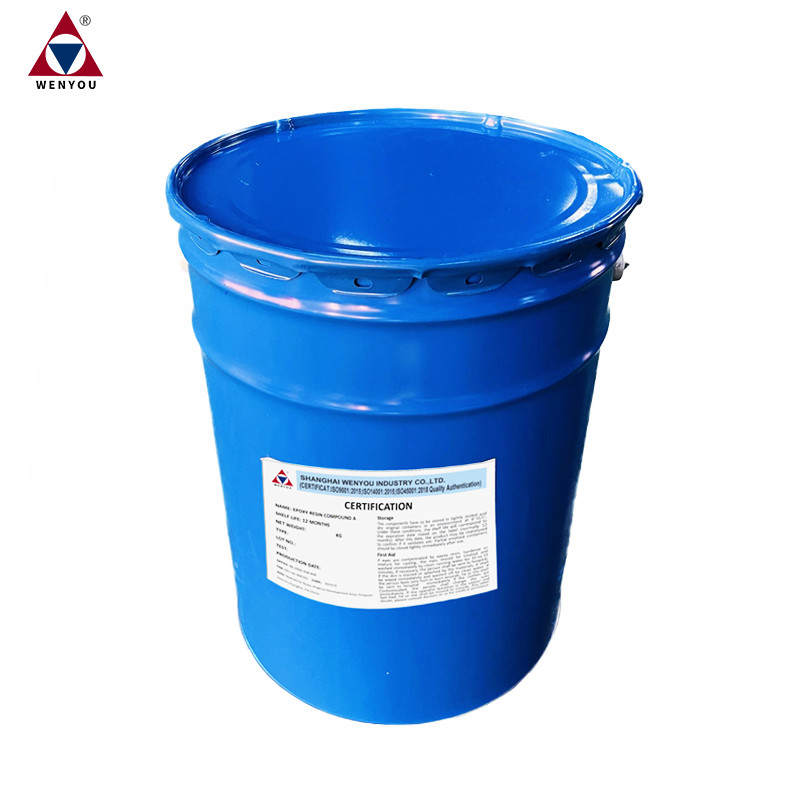

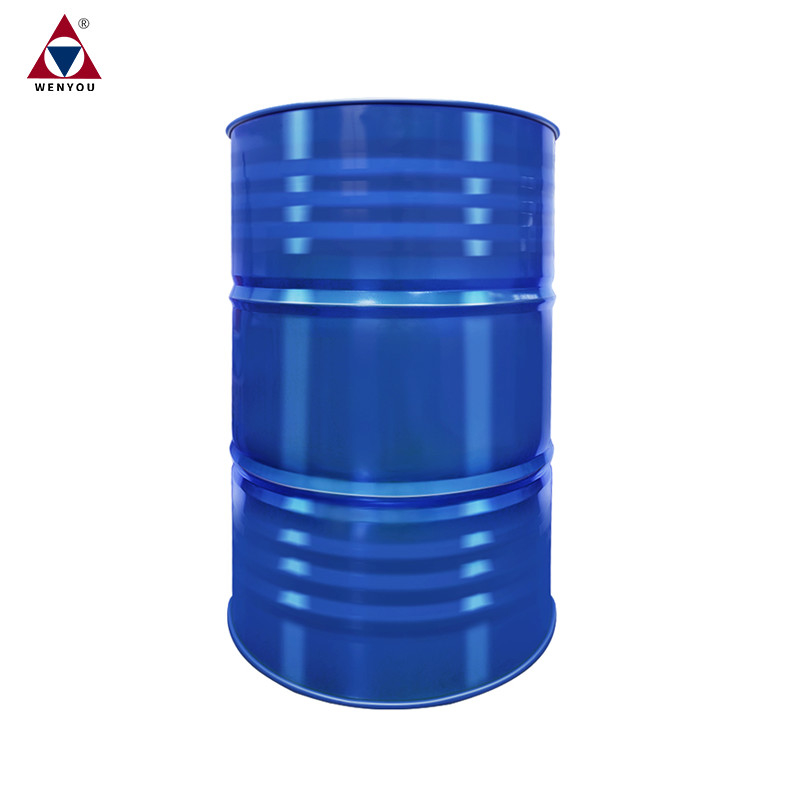

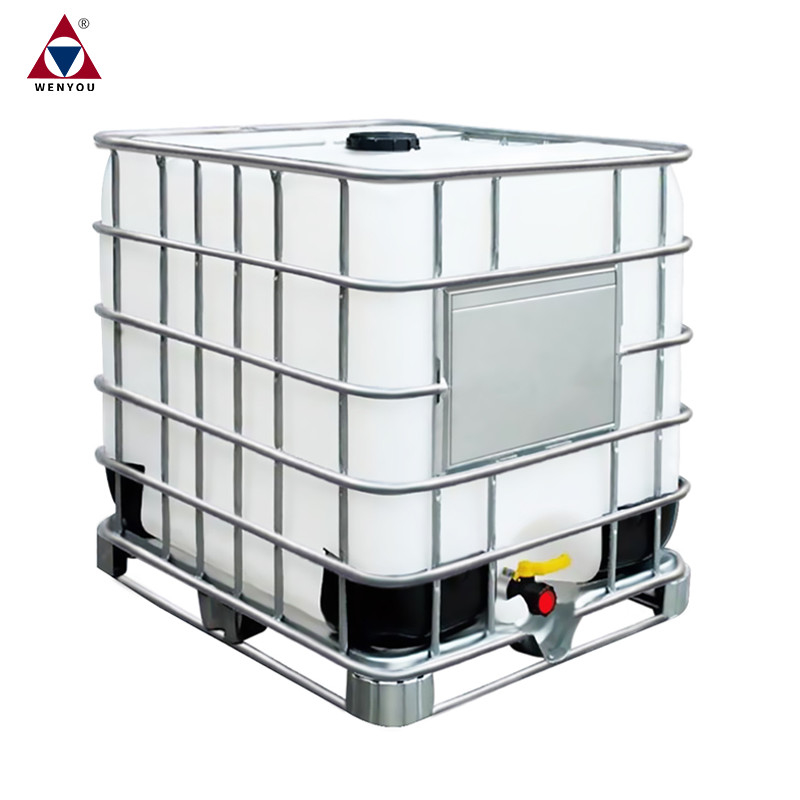

Package Image



Outdoor Epoxy Resin Raw Material Apply To Contact Box / Insulators / Bushings 0

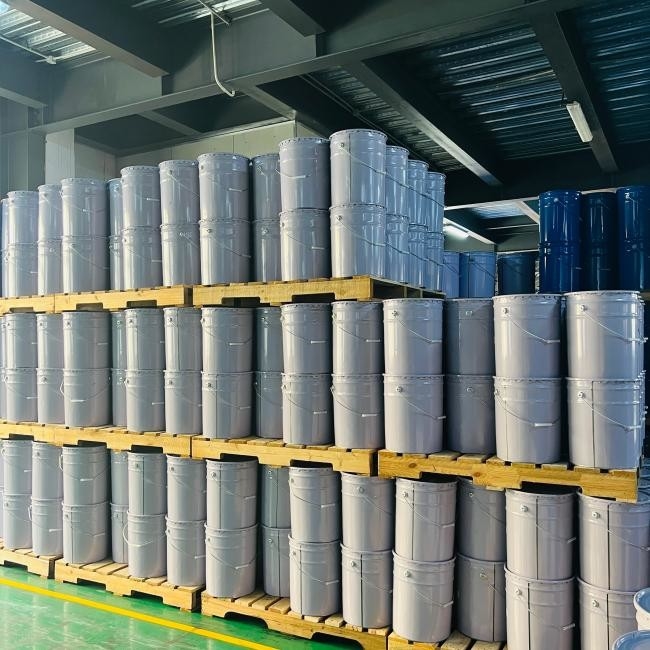

Shipment image



Outdoor Epoxy Resin Raw Material Apply To Contact Box / Insulators / Bushings 1

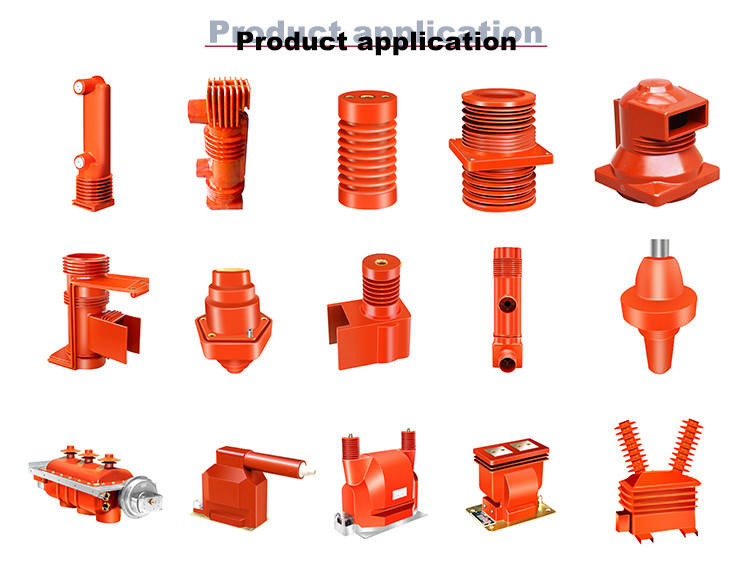

Example application image



Outdoor Epoxy Resin Raw Material Apply To Contact Box / Insulators / Bushings 2
