Insulator Stable Dimension Epoxy Resin APG & Casting Process

Insulator Stable Dimension Epoxy Resin APG & Casting Process

APG epoxy resin

stable dimension epoxy resin

casting process epoxy resin

Place of Origin:

China

Brand Name:

wenyou

Certification:

ISO9001, ISO14001, SGS, and UL

Model Number:

8217F

Contact Us
Request A Quote
Insulator Stable Dimension Epoxy Resin APG & Casting Process
Insulator Stable Dimension Epoxy Resin APG & Casting Process Insulator Stable Dimension Epoxy Resin APG & Casting Process Insulator Stable Dimension Epoxy Resin APG & Casting Process Insulator Stable Dimension Epoxy Resin APG & Casting Process Insulator Stable Dimension Epoxy Resin APG & Casting Process Insulator Stable Dimension Epoxy Resin APG & Casting Process
Product Details
Classification:
Double Components Adhesives
Usage:
Insulators, Transformers, And Other Insulation Products
Application:
Electrical Insulators For Medium And High Voltage Applications
Appearance Of Epoxy Resin:
Transparent Viscous Liquid
Viscosity At 25°C:
3000 - 6000mPa.s
Density At 25°C:
1.16 - 1.20g/cm3
Vapor Pressure At 25°C:
< 0.01Pa
Flash Point:
Around 135°C
Discription:
Insulator Stable Dimension Epoxy Resin APG & Casting Process Resina Epoxi
Payment & Shipping Terms
Minimum Order Quantity
20kg/pail as sample
Price
Negotiable
Packaging Details
20kg/pail, 220kg/barrel, 1200kg/tank
Delivery Time
7 -10 work days
Payment Terms
Normally T/T, L/C
Supply Ability
Plenty of raw material in stock
RELATED PRODUCTS
Good price High temperature curing epoxy resin liquid for electrical power insulators online Video

High temperature curing epoxy resin liquid for electrical power insulators

Get Best Price
Good price Mold forming epoxy resin APG injection process high temperature curing adhesive online Video

Mold forming epoxy resin APG injection process high temperature curing adhesive

Get Best Price
Good price Dimension fixed electric insulator transformer epoxy resin material test function well online Video

Dimension fixed electric insulator transformer epoxy resin material test function well

Get Best Price
Good price Insulator Stable Dimension Epoxy Resin APG & Casting Process online Video

Insulator Stable Dimension Epoxy Resin APG & Casting Process

Get Best Price
Contact Us
86-21-64308192
Contact Now
Product Description

Brief Introduction



Insulator stable dimension epoxy resin APG & casting process resina epoxi

LE-8217F is a modified BPA (bisphenol A) type epoxy resin.
LH-8217F is a liquid modified carboxylic anhydride hardener.



Applications



Electrical insulators for medium and high voltage applications, such as insulators, transformers, and other insulation products.



Processing Methods



Conventional gravity casting process under vacuum.
Automatic pressure gelation process (APG).
Production process is adjustable according to client’s present production methods.



Properties



Two-component saturated cyclic epoxy resin system without pre-mixed fillers, liquid at room temperature.
Low curing shrinkage, good dimensional stability of the parts, excellent processing performance, and superior mechanical and electrical properties.


Formulation



Epoxy resin LE-8217F 100 pbw
Hardener LH-8217F 100 pbw
Filler Silica powder 300 - 350 pbw
Color paste LC series * 3 pbw



Advantage



Insulator Stable Dimension Epoxy Resin APG & Casting Process 0

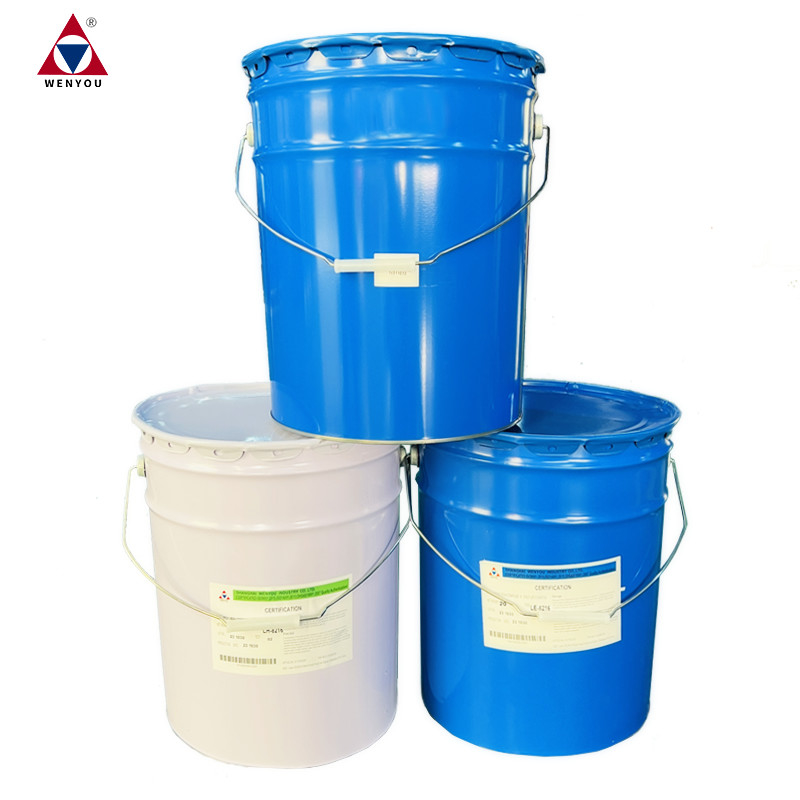

Package Image



Insulator Stable Dimension Epoxy Resin APG & Casting Process 1

Shipment image



Insulator Stable Dimension Epoxy Resin APG & Casting Process 2

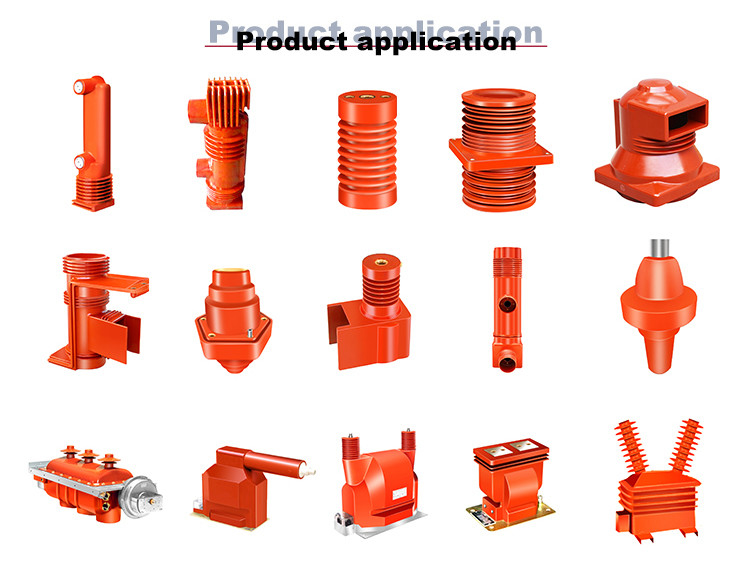

Example application image



Insulator Stable Dimension Epoxy Resin APG & Casting Process 3
