Low Voltage Electronics Epoxy Resin Casting Process For Sealing And Connecting

Low Voltage Electronics Epoxy Resin Casting Process For Sealing And Connecting

Connecting epoxy resin

Sealing epoxy resin

Low voltage electronics epoxy resin

Place of Origin:

China

Brand Name:

wenyou

Certification:

ISO9001, ISO14001, SGS, and UL

Model Number:

8316L

Contact Us
Request A Quote
Low Voltage Electronics Epoxy Resin Casting Process For Sealing And Connecting
Low Voltage Electronics Epoxy Resin Casting Process For Sealing And Connecting Low Voltage Electronics Epoxy Resin Casting Process For Sealing And Connecting Low Voltage Electronics Epoxy Resin Casting Process For Sealing And Connecting Low Voltage Electronics Epoxy Resin Casting Process For Sealing And Connecting Low Voltage Electronics Epoxy Resin Casting Process For Sealing And Connecting Low Voltage Electronics Epoxy Resin Casting Process For Sealing And Connecting Low Voltage Electronics Epoxy Resin Casting Process For Sealing And Connecting Low Voltage Electronics Epoxy Resin Casting Process For Sealing And Connecting
Product Details
Classification:
Double Components Adhesives
Usage:
Sealing And Connecting Insulation Products, Current And Voltage Transformers, Etc.
Application:
Low-voltage Electrical Applications, Electronics, Cable Insulation, Bonding, Sealing, Etc.
Appearance Of Epoxy Resin:
Light Yellow Transparent Viscous Liquid
Viscosity At 25°C:
3000 - 7000mPa.s
Density At 25°C:
1.15 - 1.19g/cm3
Vapor Pressure At 25°C:
< 0.01Pa
Flash Point:
Around 110°C
Discription:
Low Voltage Electronics Epoxy Resin Casting Process For Sealing And Connecting
Payment & Shipping Terms
Minimum Order Quantity
20kg/pail as sample
Price
Negotiable
Packaging Details
20kg/pail, 220kg/barrel, 1200kg/tank
Delivery Time
7 -10 work days
Payment Terms
Normally T/T, L/C
Supply Ability
Plenty of raw material in stock
RELATED PRODUCTS
Good price High temperature curing epoxy resin liquid for electrical power insulators online Video

High temperature curing epoxy resin liquid for electrical power insulators

Get Best Price
Good price Mold forming epoxy resin APG injection process high temperature curing adhesive online Video

Mold forming epoxy resin APG injection process high temperature curing adhesive

Get Best Price
Good price Dimension fixed electric insulator transformer epoxy resin material test function well online Video

Dimension fixed electric insulator transformer epoxy resin material test function well

Get Best Price
Good price Insulator Stable Dimension Epoxy Resin APG & Casting Process online Video

Insulator Stable Dimension Epoxy Resin APG & Casting Process

Get Best Price
Contact Us
86-21-64308192
Contact Now
Product Description

Brief Introduction



Low voltage electronics epoxy resin casting process for sealing and connecting

LE-8316L is a modified BPA-type epoxy resin.
LH-8316L is a liquid modified carboxylic anhydride hardener.



Applications



Low-voltage electrical applications, electronics, cable insulation, bonding, sealing, etc.
For example, sealing and connecting insulation products, current and voltage transformers, etc.



Processing Methods



Conventional gravity casting process under vacuum.

Production process is adjustable according to client’s present production methods



Properties



A two-component epoxy resin system, where LE-8316L and LH-8316L are in liquid form at room temperature.
Suitable for casting processes. The glass transition temperature (Tg) is 60-80°C


Formulation



Epoxy resin LE-8316L 100 pbw
Hardener LH-8316L 100 pbw
Filler Silica powder 300 - 400 pbw
Color paste LC series * Appropriate pbw



Advantage



Low Voltage Electronics Epoxy Resin Casting Process For Sealing And Connecting 0

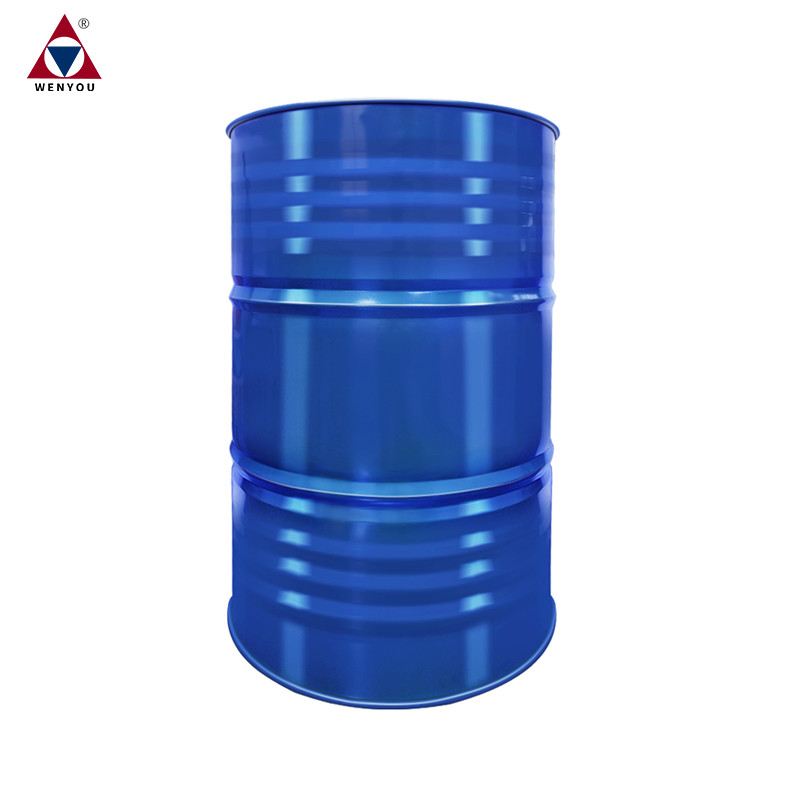

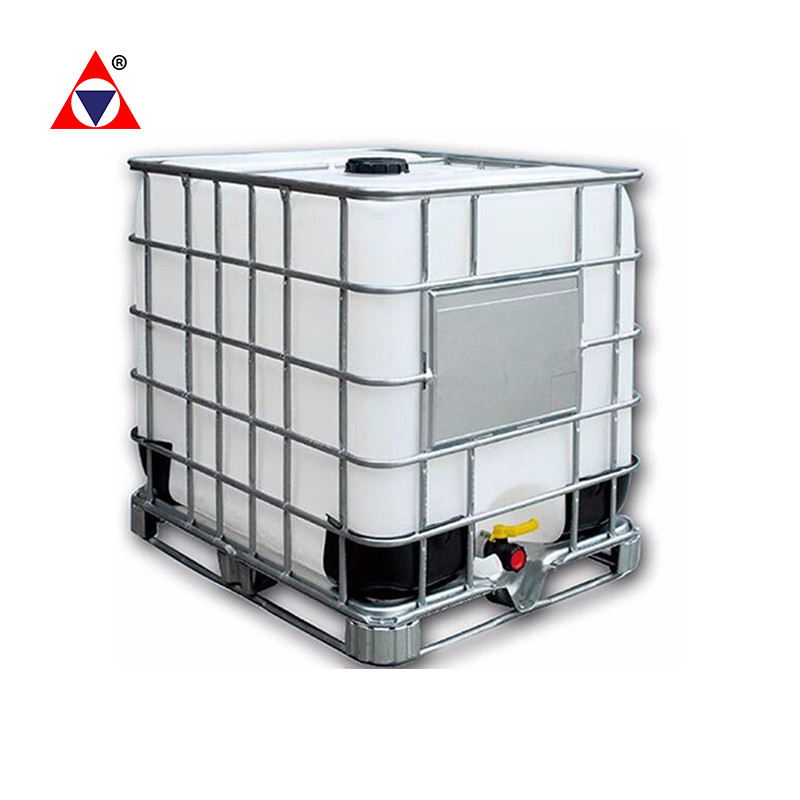

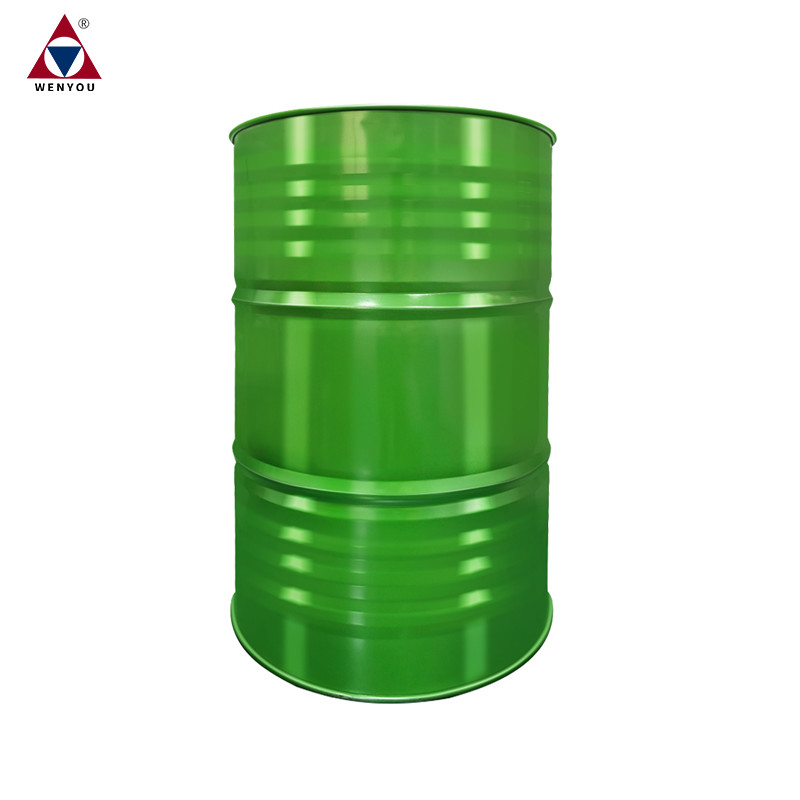

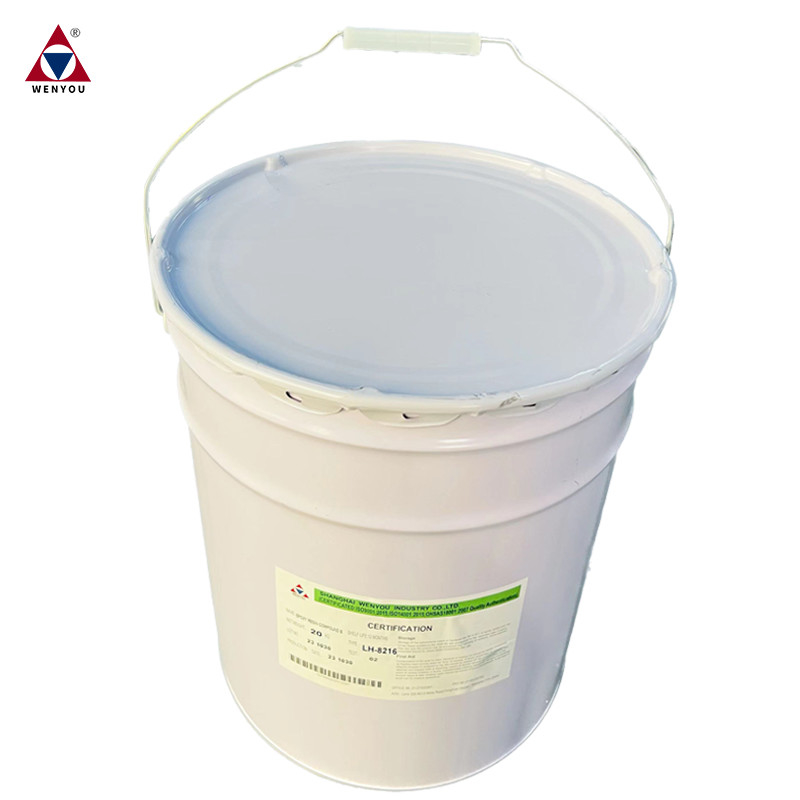

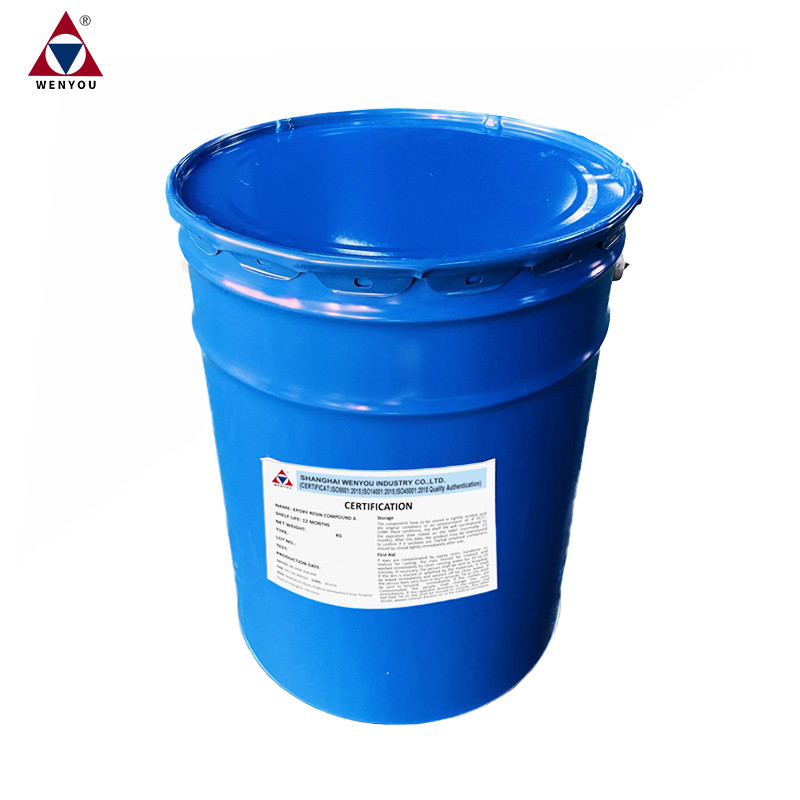

Package Image



Low Voltage Electronics Epoxy Resin Casting Process For Sealing And Connecting 1

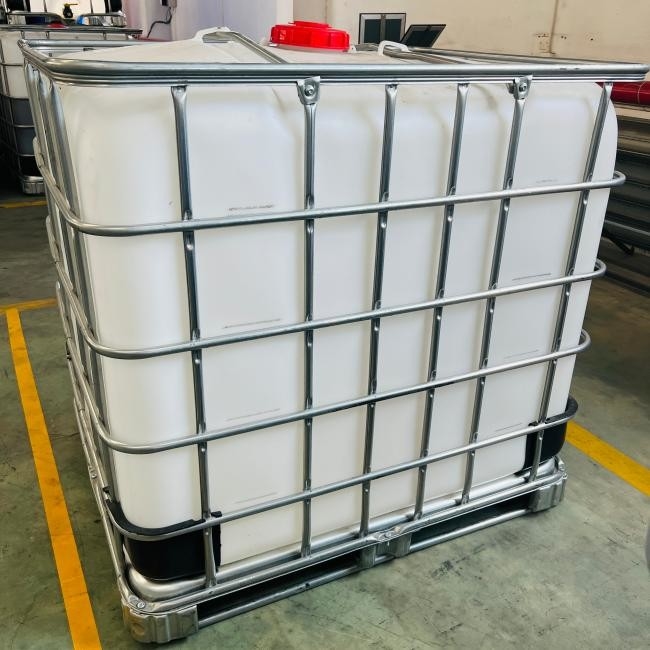

Shipment image



Low Voltage Electronics Epoxy Resin Casting Process For Sealing And Connecting 2

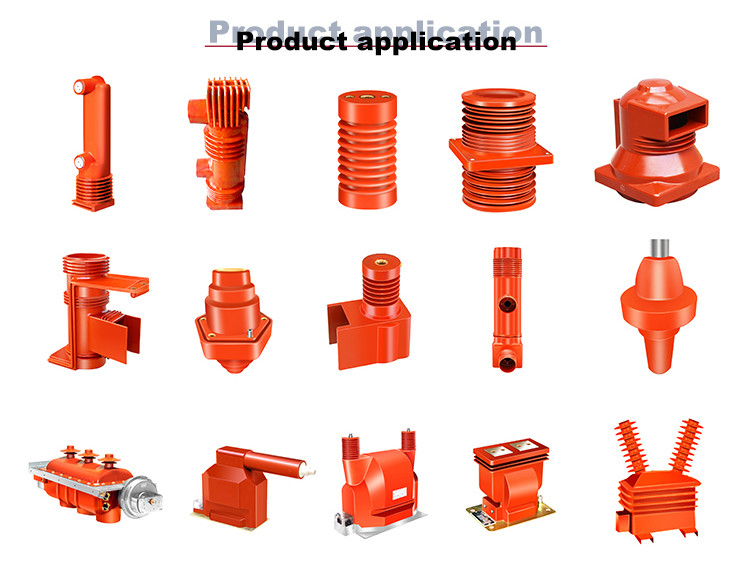

Example application image



Low Voltage Electronics Epoxy Resin Casting Process For Sealing And Connecting 3
