Outdoor Electrical Insulator Epoxy Resin APG Injection Process Hardener

Outdoor Electrical Insulator Epoxy Resin APG Injection Process Hardener

APG injection process epoxy resin

Outdoor electrical insulator epoxy resin

Place of Origin:

China

Brand Name:

wenyou

Certification:

ISO9001, ISO14001, SGS, and UL

Model Number:

8516

Contact Us
Request A Quote
Outdoor Electrical Insulator Epoxy Resin APG Injection Process Hardener
Outdoor Electrical Insulator Epoxy Resin APG Injection Process Hardener Outdoor Electrical Insulator Epoxy Resin APG Injection Process Hardener Outdoor Electrical Insulator Epoxy Resin APG Injection Process Hardener Outdoor Electrical Insulator Epoxy Resin APG Injection Process Hardener Outdoor Electrical Insulator Epoxy Resin APG Injection Process Hardener
Product Details
Classification:
Double Components Adhesives
Usage:
Insulators, Transformers, And Other Insulation Products
Application:
Outdoor Electrical Insulators For Medium And High Voltage Applications
Appearance Of Epoxy Resin:
Light Yellow Transparent Viscous Liquid
Viscosity At 25°C:
500 - 2000mPa.s
Density At 25°C:
1.16 - 1.20g/cm3
Vapor Pressure At 25°C:
≤ 0.01Pa
Flash Point:
Around 135°C
Discription:
Outdoor Electrical Insulator Epoxy Resin APG Injection Process Hardener
Epoxy Value:
4.5 - 5.0Eq/kg
Payment & Shipping Terms
Minimum Order Quantity
20kg/pail as sample
Price
Negotiable
Packaging Details
20kg/pail, 220kg/barrel, 1200kg/tank
Delivery Time
7 -10 work days
Payment Terms
Normally T/T, L/C
Supply Ability
Plenty of raw material in stock
RELATED PRODUCTS
Good price Electronic insulators fast curing epoxy hardener vacuum casting resin online Video

Electronic insulators fast curing epoxy hardener vacuum casting resin

Get Best Price
Good price Huntsman epoxy resin alternative economical material with high quality online Video

Huntsman epoxy resin alternative economical material with high quality

Get Best Price
Good price Epoxy resin with curing agent to produce power industrial CT PT transformer insulator bushing online Video

Epoxy resin with curing agent to produce power industrial CT PT transformer insulator bushing

Get Best Price
Good price China Supplier Fast Delivery Reasonable Price Epoxy Resin Hardeners For APG Process online Video

China Supplier Fast Delivery Reasonable Price Epoxy Resin Hardeners For APG Process

Get Best Price
Contact Us
86-21-64308192
Contact Now
Product Description

Brief Introduction



Outdoor electrical insulator epoxy resin APG injection process hardener

LE-8516 is a modified saturated cyclic aliphatic epoxy resin system.
LH-8516 is a modified weather-resistant anhydride hardener.



Applications



Outdoor electrical insulators for medium and high voltage applications, such as insulators, transformers, and other insulation products.



Processing Methods



Conventional gravity casting process under vacuum.

Automatic pressure gelation process (APG).

Production process is adjustable according to client’s present production methods.



Properties



Two-component saturated cyclic epoxy resin system without pre-mixed fillers, liquid at room temperature.
Excellent UV resistance, excellent resistance to thermal shock, superior environmental resistance, and superior mechanical and dielectric properties.


Formulation



Epoxy resin LE-8516 100 pbw
Hardener LH-8516 100 pbw
Filler Silica powder 320 - 360 pbw
Color paste LC series * 3 pbw



Advantage

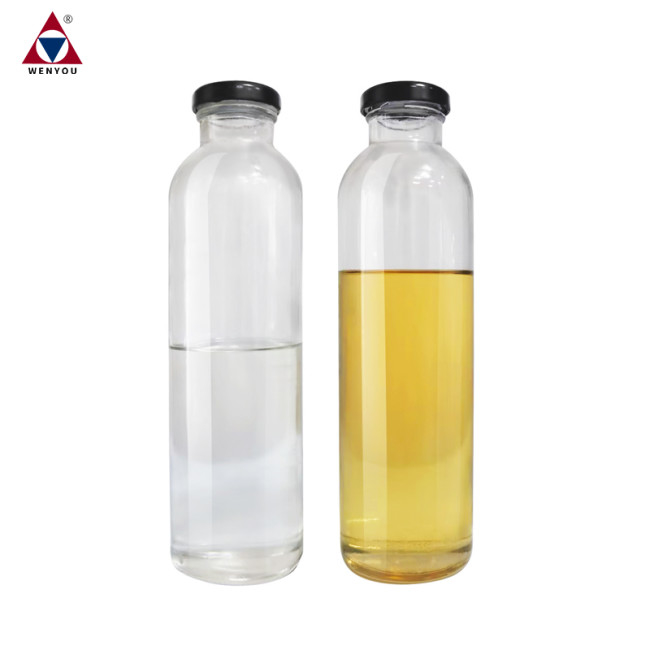

Outdoor Electrical Insulator Epoxy Resin APG Injection Process Hardener 0

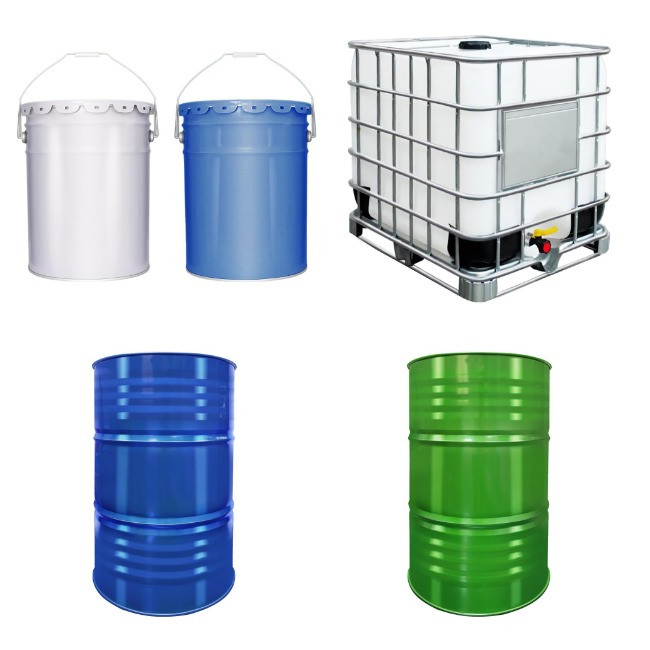

Package Image



Outdoor Electrical Insulator Epoxy Resin APG Injection Process Hardener 1

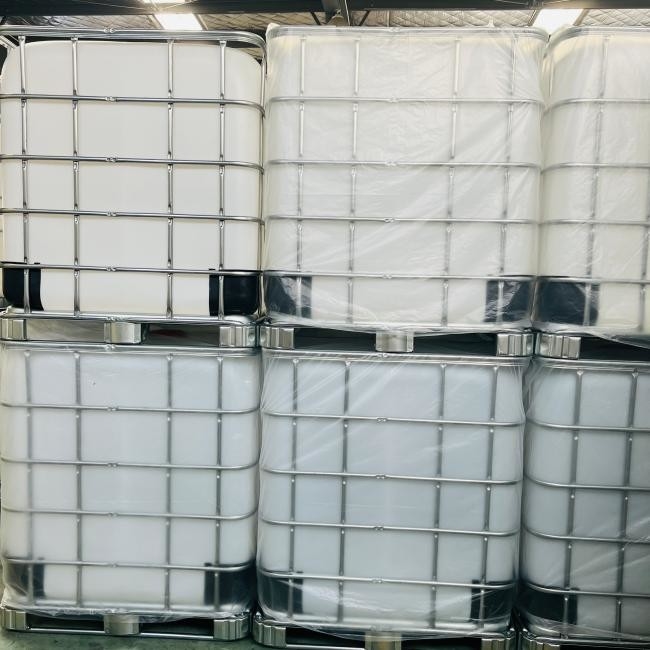

Shipment image



Outdoor Electrical Insulator Epoxy Resin APG Injection Process Hardener 2

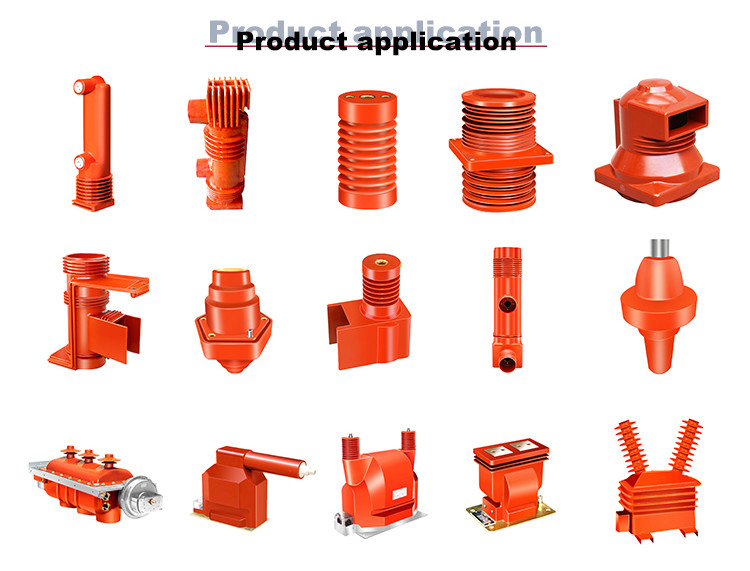

Example application image



Outdoor Electrical Insulator Epoxy Resin APG Injection Process Hardener 3
