Home > products > Flame Retardant Epoxy Resin >
flame retardant epoxy resin for CT PT transformer APG process epoxy resin

flame retardant epoxy resin for CT PT transformer APG process epoxy resin

Flame Retardant Epoxy Resin

APG process epoxy resin

CT PT transformer epoxy resin

Place of Origin:

China

Brand Name:

wenyou

Certification:

ISO9001, ISO14001, SGS, and UL

Model Number:

8229A

Contact Us
Request A Quote

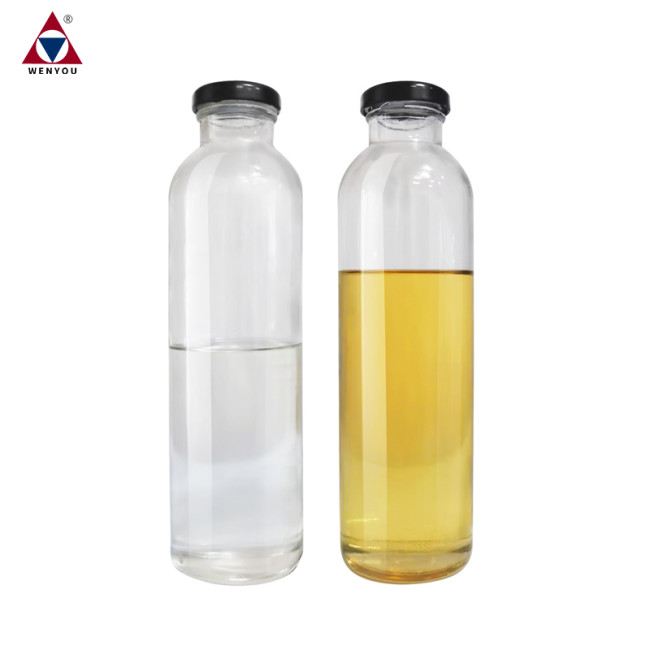

flame retardant epoxy resin for CT PT transformer APG process epoxy resin
flame retardant epoxy resin for CT PT transformer APG process epoxy resin flame retardant epoxy resin for CT PT transformer APG process epoxy resin flame retardant epoxy resin for CT PT transformer APG process epoxy resin
Product Details
Classification:
Double Components Adhesives
Usage:
10-35kV Sealed Terminal Posts, Transformers, Current Transformers, And Other Insulation Components.
Application:
Electrical Insulators For Medium And High Voltage Applications.
Appearance Of Epoxy Resin:
Milky White Viscous Liquid
Appearance Of Hardener:
Light Yellow Liquid
Viscosity At 25°C:
10000 - 20000mPa.s
Density At 25°C:
1.55 - 1.70g/cm3
Vapor Pressure At 25°C:
≤ 0.01Pa
Flash Point:
Around 135°C
Description:
Flame Retardant Epoxy Resin For CT PT Transformer APG Process Epoxy Resin
Payment & Shipping Terms
Minimum Order Quantity
20kg/pail as sample
Price
Negotiable
Packaging Details
20kg/pail, 220kg/barrel, 1200kg/tank
Delivery Time
7 -10 work days
Payment Terms
Normally L/C, T/T
Supply Ability
Plenty of raw material in stock
RELATED PRODUCTS
Good price Light Yellow Epoxy Resin Curing Agent For Electrical Insulators 1110KV online Video

Light Yellow Epoxy Resin Curing Agent For Electrical Insulators 1110KV

Get Best Price
Good price APG Electrical Epoxy Resin With Pigment For APG Machine To Transformer Insualtors online Video

APG Electrical Epoxy Resin With Pigment For APG Machine To Transformer Insualtors

Get Best Price
Good price Flame Retardant Apg Epoxy Resin High Voltage 26590-20-5 online Video

Flame Retardant Apg Epoxy Resin High Voltage 26590-20-5

Get Best Price
Good price Casting Epoxy Resin Flame Retardant Epoxy Resin For Medium High Voltage Transformer online Video

Casting Epoxy Resin Flame Retardant Epoxy Resin For Medium High Voltage Transformer

Get Best Price
Contact Us
86-21-64308192
Contact Now
Product Description

Brief Introduction

flame retardant epoxy resin for CT PT transformer APG process epoxy resin

LW-8229A is a modified PBA-type epoxy resin enriched with fillers.

LW-8229B is a modified carboxylic acid anhydride curing agent, also containing fillers.

Applications

  • Electrical insulators designed for medium and high voltage uses.
  • Ideal for 10-35 kV sealed terminal posts, transformers, current transformers, and other insulation components.

Processing Methods

  • Conventional Gravity Casting Process under vacuum.
  • Automatic Pressure Gelation Process (APG).
  • The production process can be customized to align with the client's existing manufacturing methods.

Properties

  • This system features a two-component saturated cyclic epoxy resin with pre-mixed fillers, available as a slurry at room temperature.
  • Offers excellent thermal shock resistance and superior crack durability.



Formulation



Epoxy resin LW - 8229A 100 pbw
Hardener LW - 8229B 100 pbw
Color paste LC series * 1 pbw



Note: The components needs to be mixed evenly before use.

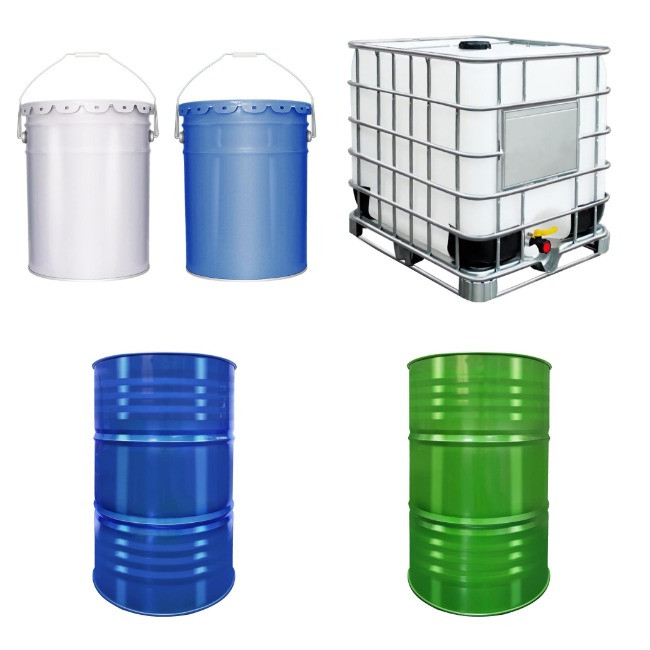

Package Image



flame retardant epoxy resin for CT PT transformer APG process epoxy resin 0

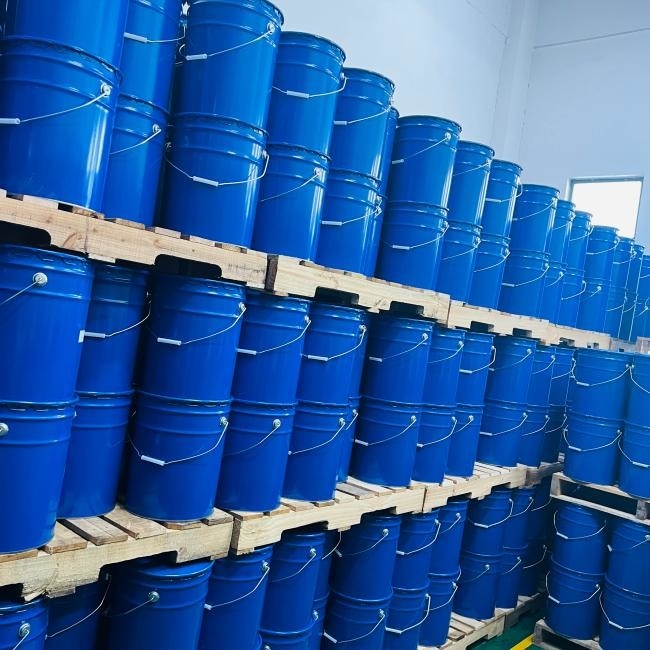

Example application image



flame retardant epoxy resin for CT PT transformer APG process epoxy resin 1
