Two component polyurethane resin APG machine mold forming epoxy resin

Two component polyurethane resin APG machine mold forming epoxy resin

Machine Mold Forming Epoxy Resin

Place of Origin:

China

Brand Name:

wenyou

Certification:

ISO9001, ISO14001, SGS, and UL

Model Number:

8214

Contact Us
Request A Quote
Two component polyurethane resin APG machine mold forming epoxy resin
Two component polyurethane resin APG machine mold forming epoxy resin Two component polyurethane resin APG machine mold forming epoxy resin Two component polyurethane resin APG machine mold forming epoxy resin
Product Details
Classification:
Double Components Adhesives
Usage:
Dry-type Transformers, 10-66kV Current Transformers, Voltage Transformers, And Other Related Products.
Application:
Electrical Insulators For Medium And High Voltage Applications.
Viscosity At 25°C:
7500 - 12000mPa.s
Density At 25°C:
1.16 - 1.20g/cm3
Vapor Pressure At 25°C:
≤ 0.01Pa
Flash Point:
Around 135°C
Appearance Of Resin:
Transparent Viscous Liquid
Appearance Of Hardener:
Light Yellow Liquid
Description:
Two Component Polyurethane Resin APG Machine Mold Forming Epoxy Resin
Payment & Shipping Terms
Minimum Order Quantity
20kg/pail as sample
Price
Negotiable
Packaging Details
20kg/pail, 220kg/barrel, 1200kg/tank
Delivery Time
7 -10 work days
Payment Terms
Normally L/C, T/T
Supply Ability
Plenty of raw material in stock
RELATED PRODUCTS
Good price Electric insulation material high temperature curing epoxy resin for Switchgears online Video

Electric insulation material high temperature curing epoxy resin for Switchgears

Get Best Price
Good price Best service epoxy resin supply chain electrical insulating epoxy resin online Video

Best service epoxy resin supply chain electrical insulating epoxy resin

Get Best Price
Good price Liquid Casting Epoxy Resin For Electric Insulators Outdoor Applications online Video

Liquid Casting Epoxy Resin For Electric Insulators Outdoor Applications

Get Best Price
Good price Casting Liquid Epoxy Resin Electrical Insulation Epoxy Resin For Molds / Transformer online Video

Casting Liquid Epoxy Resin Electrical Insulation Epoxy Resin For Molds / Transformer

Get Best Price
Contact Us
86-21-64308192
Contact Now
Product Description

Brief Introduction

CT/PT Transformer Epoxy Resin with Polyurethane Hardener

LE-8214 is a modified BPA-type epoxy resin designed for enhanced performance.

LH-8214 is a liquid modified carboxylic acid anhydride curing agent.

Applications

  • Suitable for electrical insulation in medium and high voltage applications.
  • Ideal for dry-type transformers, 10-66 kV current transformers, voltage transformers, and related components.

Processing Methods

  • Conventional Gravity Casting Process under vacuum.
  • The production process can be tailored to meet the client's existing manufacturing techniques.

Properties

  • This system consists of a two-component saturated cyclic epoxy resin without pre-mixed fillers, remaining in liquid form at room temperature.
  • Features low curing shrinkage, excellent dimensional stability, superior processing capabilities, and outstanding mechanical and electrical properties.



Formulation



Epoxy resin LE-8214 100 pbw
Hardener LH-8214 100 pbw
Filler Silica Powder 220-250 pbw
Color paste LC series *

Appropriate

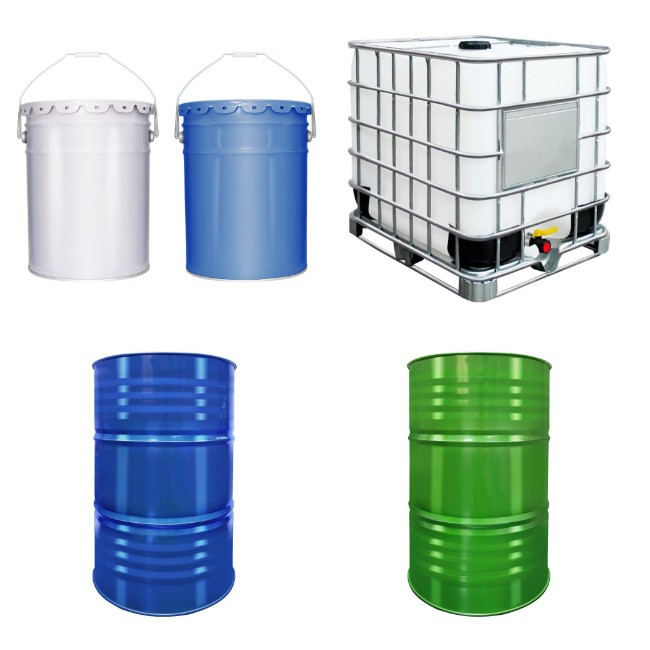

Package Image

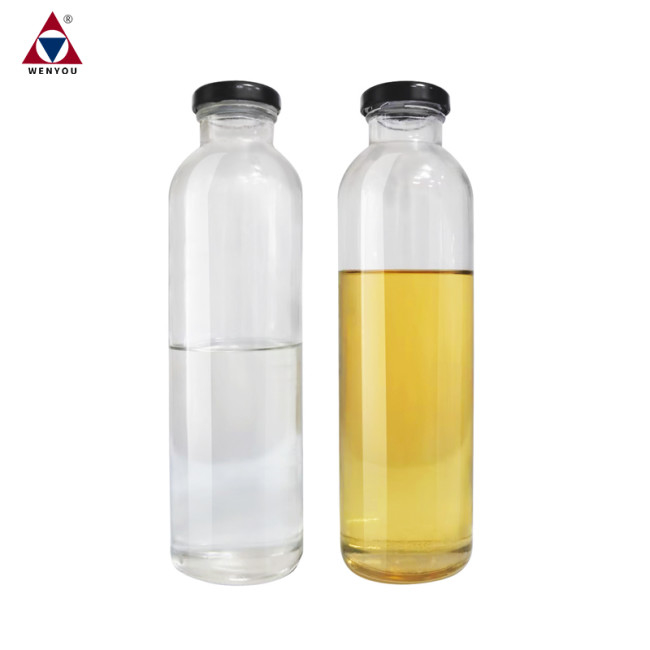

Two component polyurethane resin APG machine mold forming epoxy resin 0

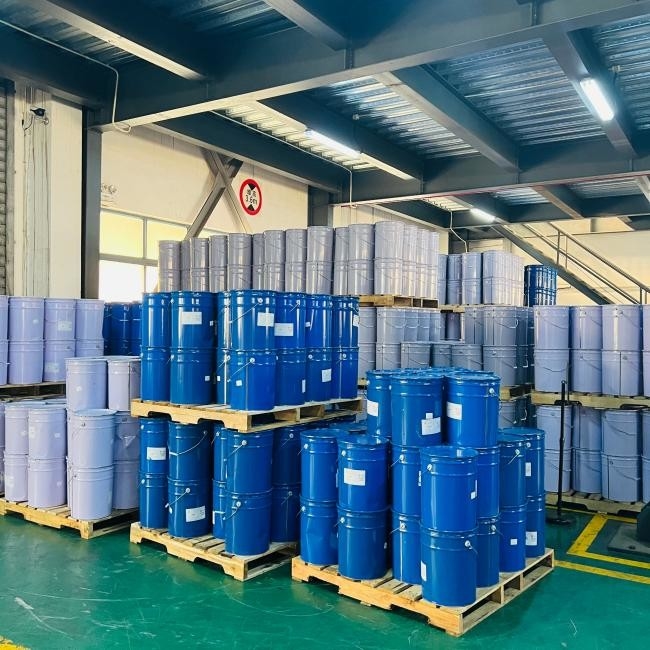

Example application image



Two component polyurethane resin APG machine mold forming epoxy resin 1
