Reliable raw material epoxy resin liquid fast delivery stable products

Reliable raw material epoxy resin liquid fast delivery stable products

Stable epoxy resin liquid

Fast Delivery epoxy resin liquid

Reliable epoxy resin liquid

Place of Origin:

China

Brand Name:

wenyou

Certification:

ISO9001, ISO14001, SGS, and UL

Model Number:

8216F

Contact Us
Request A Quote
Reliable raw material epoxy resin liquid fast delivery stable products
Reliable raw material epoxy resin liquid fast delivery stable products Reliable raw material epoxy resin liquid fast delivery stable products Reliable raw material epoxy resin liquid fast delivery stable products
Product Details
Classification:
Double Components Adhesives
Usage:
Dry - Type Transformer
Application:
Electrical Insulators For Medium And High Voltage Applications

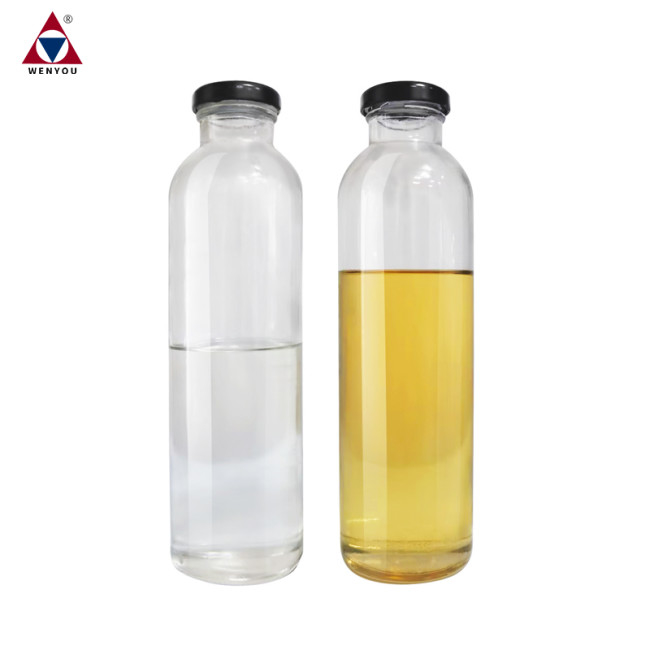

Appearance Of Epoxy Resin:
Transparent Viscous Liquid
Appearance Of Hardener:
Light Yellow Transparent Liquid
Viscosity At 25°C:
150 - 450mPa.s
Density At 25°C:
1.17 - 1.24g/cm3
Vapor Pressure At 25°C:
Around 0.5Pa
Flash Point:
Around 140°C
Description:
Reliable Raw Material Epoxy Resin Liquid Fast Delivery Stable Products
Payment & Shipping Terms
Minimum Order Quantity
20kg/pail as sample
Price
Negotiable
Packaging Details
20kg/pail, 220kg/barrel, 1200kg/tank
Delivery Time
7 -10 work days
Payment Terms
Normally L/C, T/T
Supply Ability
Plenty of raw material in stock
RELATED PRODUCTS
Good price Strong weather endurance Transformers Epoxy Resin outdoor CT VT raw material online Video

Strong weather endurance Transformers Epoxy Resin outdoor CT VT raw material

Get Best Price
Good price Excellent transformer maker epoxy resin producer environment friendly chemicals online Video

Excellent transformer maker epoxy resin producer environment friendly chemicals

Get Best Price
Good price Reliable raw material epoxy resin liquid fast delivery stable products online Video

Reliable raw material epoxy resin liquid fast delivery stable products

Get Best Price
Good price Casting epoxy resin for dry - type transformer Indoor use thermal endurance material online Video

Casting epoxy resin for dry - type transformer Indoor use thermal endurance material

Get Best Price
Contact Us
86-21-64308192
Contact Now
Product Description

Brief Introduction

Reliable Raw Material Epoxy Resin for Fast Delivery and Stability

LE-8216F is a modified saturated cyclic aliphatic epoxy resin system.

LH-8216F is a modified weather-resistant anhydride hardener.

Applications

  • Designed for electrical insulation in medium and high voltage applications.
  • Suitable for dry-type transformers, 10-66 kV current transformers, voltage transformers, and other related components.

Processing Methods

  • Conventional Gravity Casting Process under vacuum.
  • The production process can be customized to align with the client's existing manufacturing methods.

Properties

  • This two-component saturated cyclic epoxy resin system is free of pre-mixed fillers and remains liquid at room temperature.
  • Offers low curing shrinkage, excellent dimensional stability, outstanding processing characteristics, and superior mechanical and electrical performance.



Formulation



Epoxy resin LE-8216F 100 pbw
Hardener LH-8216F 100 pbw
Filler Silica Powder 300-360 pbw
Color paste LC series * Appropriate

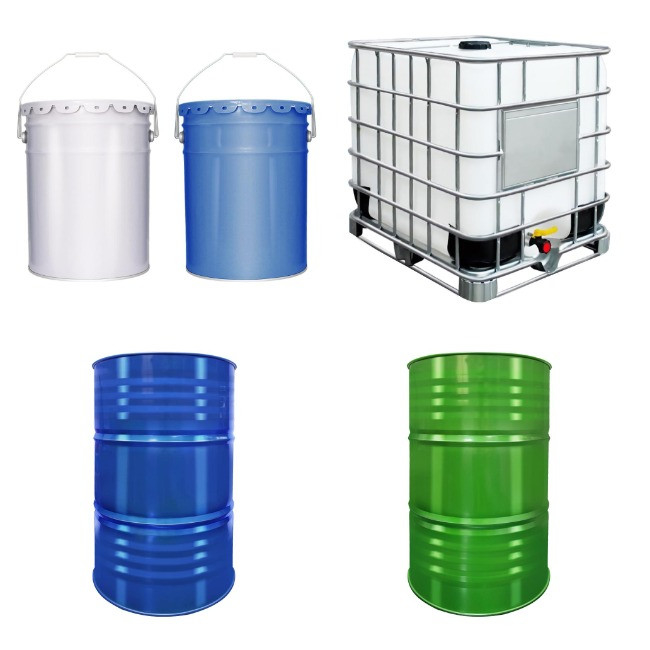

Package Image



Reliable raw material epoxy resin liquid fast delivery stable products 0

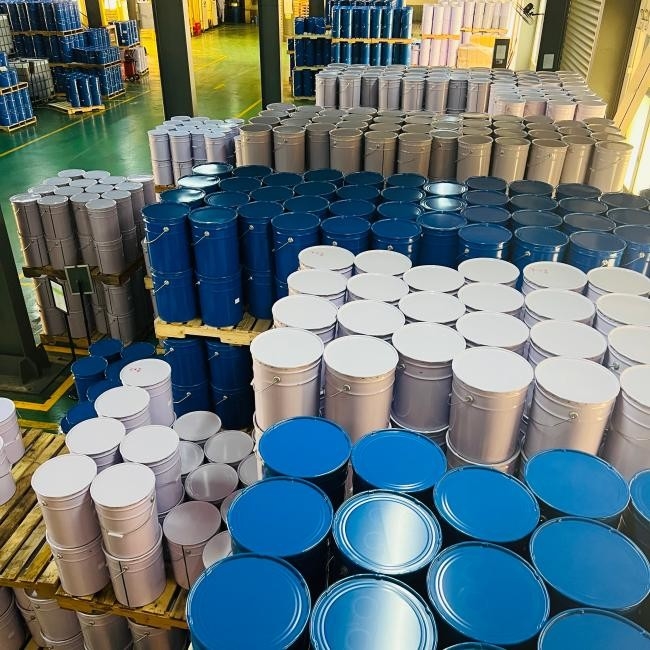

Example application image



Reliable raw material epoxy resin liquid fast delivery stable products 1
