LE-8216 is a modified saturated cyclic aliphatic epoxy resin system, complemented by LH-8216, a modified weather-resistant anhydride hardener. This system is UL certified and designed as a flame-retardant material suitable for both indoor and outdoor applications.
Ideal for electrical insulators in medium and high voltage settings, this epoxy resin is used in products such as insulators, transformers, and various insulation components.
The material can be processed via a conventional gravity casting method under vacuum or through an Automatic Pressure Gelation (APG) process. The production methods are adaptable to align with the client's existing manufacturing setups.
This two-component system is a saturated cyclic epoxy resin without pre-mixed fillers, remaining liquid at room temperature. It boasts excellent UV resistance, outstanding thermal shock resistance, superior environmental resilience, and excellent mechanical and dielectric properties.
Formulation
| Epoxy resin | LE-8216 | 100 pbw |
| Hardener | LH-8216 | 100 pbw |
| Filler | Silica powder | 280 - 350 pbw |
| Color paste | LC series * | 3 pbw |
Advantage

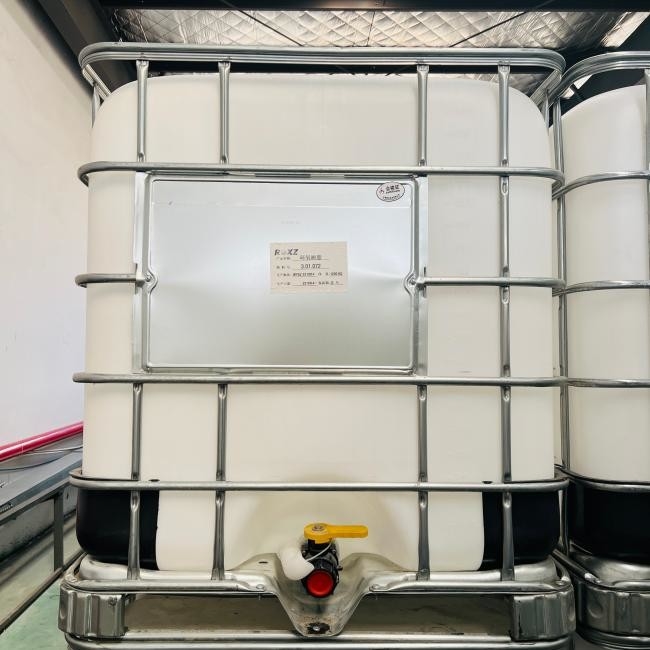

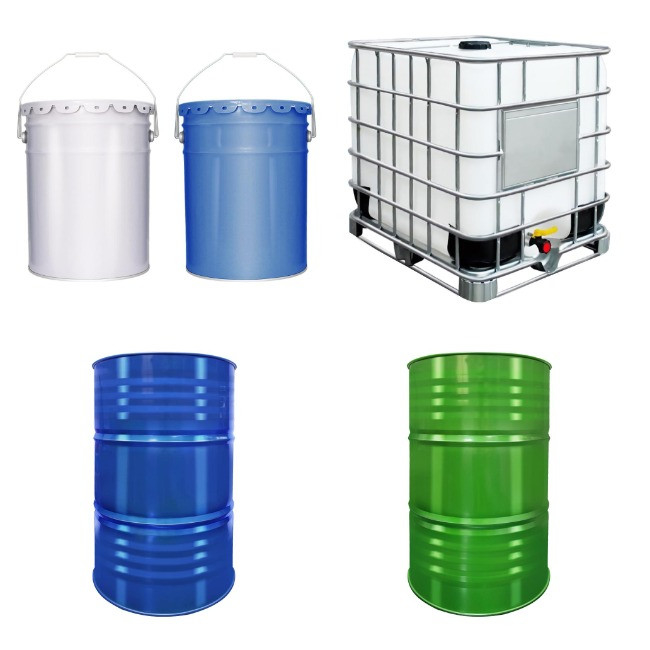

Package Image
Shipment image
Example application image
