Place of Origin:
China
Brand Name:
wenyou
Certification:
ISO9001, ISO14001, SGS, and UL
Model Number:
8316L
Video

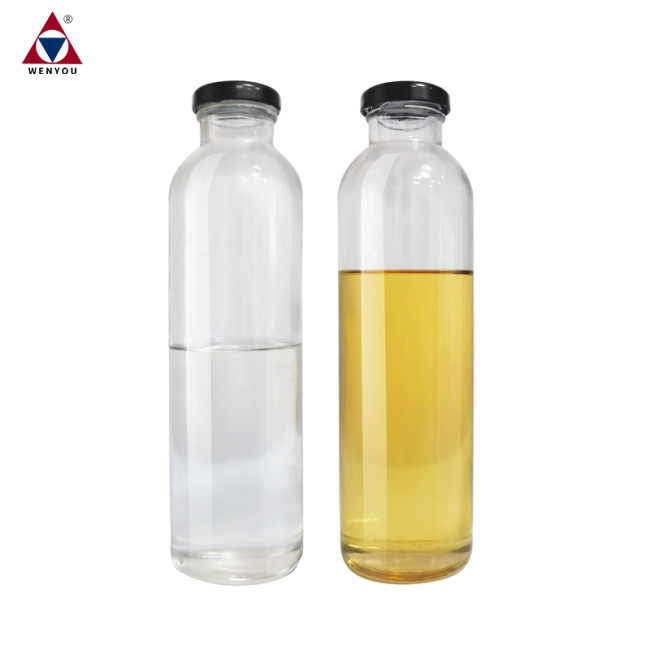

LE-8316L is a modified BPA-type epoxy resin, combined with LH-8316L, a liquid modified carboxylic anhydride hardener. This system is designed for mold forming and APG injection processes, providing high-temperature curing capabilities.
This epoxy resin is ideal for low-voltage electrical applications, including electronics, cable insulation, bonding, and sealing. It is particularly suited for sealing and connecting insulation products, as well as current and voltage transformers.
Processing can be carried out using a conventional gravity casting method under vacuum conditions. The production process can also be tailored to align with the client's existing manufacturing techniques.
This two-component epoxy resin system consists of LE-8316L and LH-8316L, both in liquid form at room temperature. It is suitable for casting processes, with a glass transition temperature (Tg) ranging between 60-80°C, ensuring durability under elevated temperatures.
Formulation
| Epoxy resin | LE-8316L | 100 pbw |
| Hardener | LH-8316L | 100 pbw |
| Filler | Silica powder | 300 - 400 pbw |
| Color paste | LC series * | Appropriate pbw |
Advantage

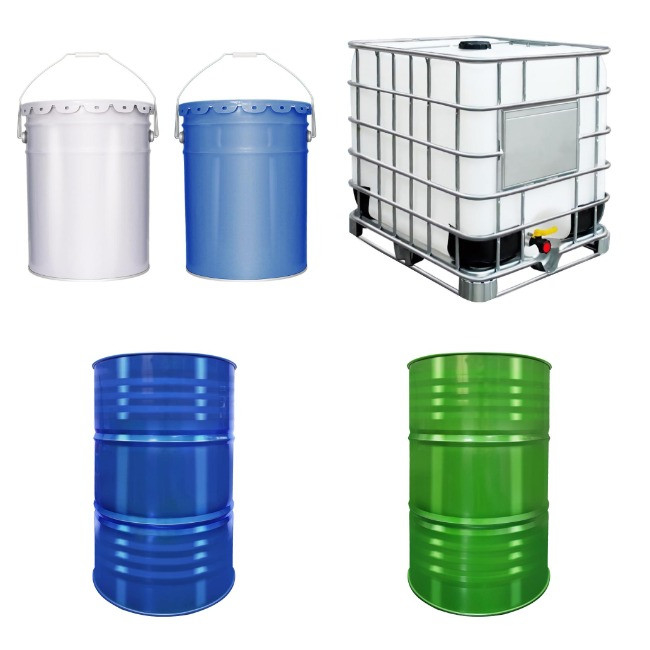

Package Image

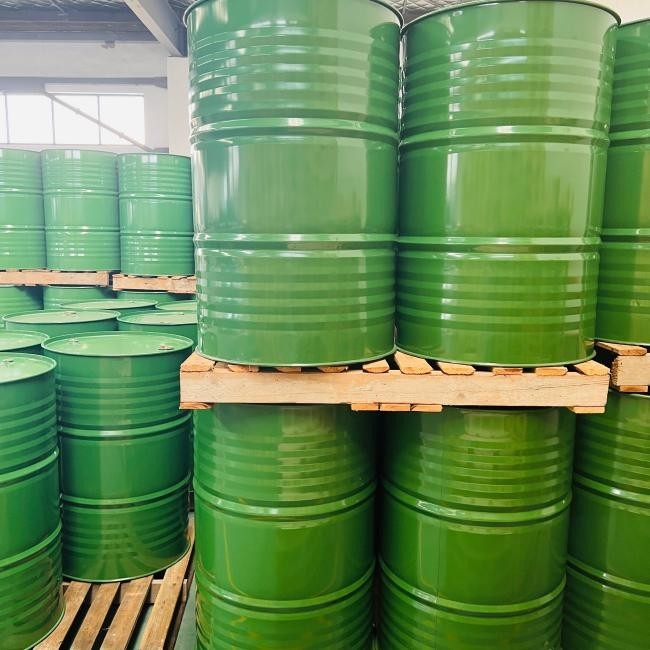

Shipment image
Example application image
