Place of Origin:
China
Brand Name:
wenyou
Certification:
ISO9001, ISO14001, SGS, and UL
Model Number:
9205L
LE-9205L is a liquid solvent-free modified bisphenol A type epoxy resin.
LH-9205L is a liquid modified carboxylic anhydride hardener with an added accelerator.
LF-660 is a low-viscosity solvent-free modified polyol.
Indoor electrical insulator potting compound two component epoxy resin liquid
Indoor electrical insulators for medium and high voltage applications, such as insulators, dry-type transformers, and other insulation products.
Conventional gravity casting process under vacuum.
Automatic pressure gelation process (APG).
Production process is adjustable according to client’s present production methods.
Excellent resistance to thermal shock, superior mechanical and dielectric properties.
Formulation
| Epoxy resin | LE-9205L | 100 pbw |
| Hardener | LH-9205L | 100 pbw |
| Flexbilizer | LF-660 | 0-20 pbw |
| Filler | Silica powder | 350-420 pbw |
| Color paste | LC series * | 3 pbw |
Advantage

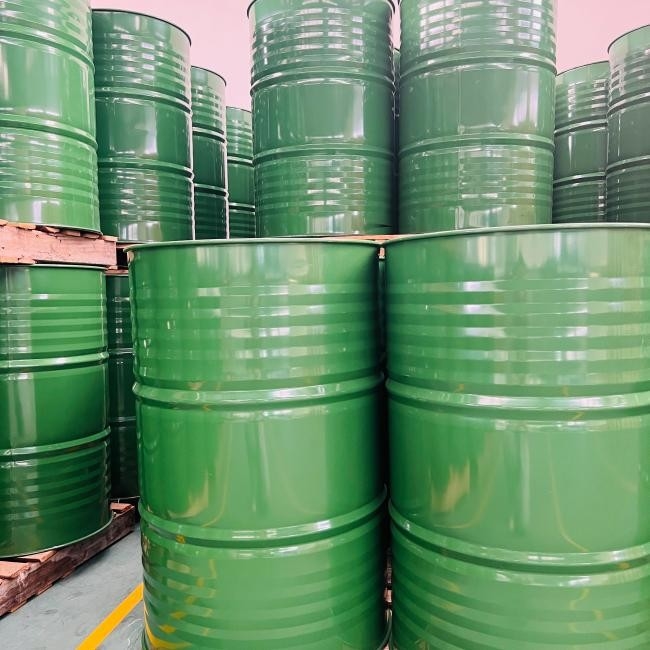

Package Image
Shipment image

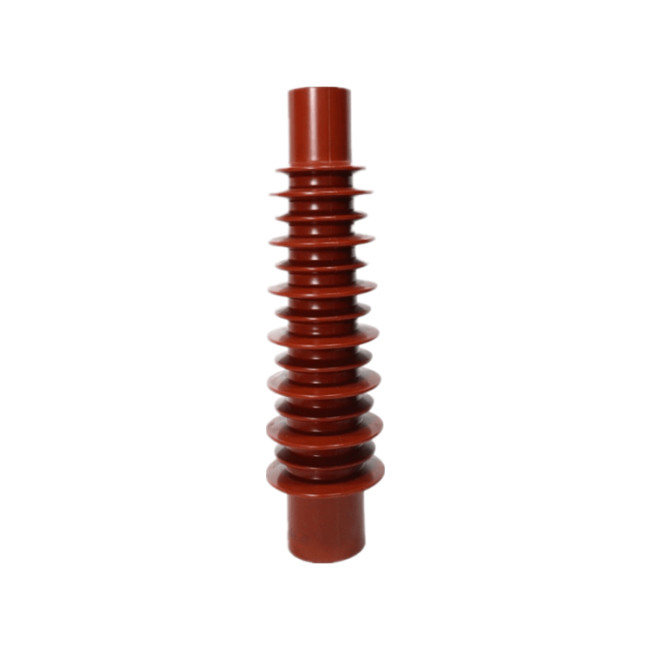

Example application image
