Place of Origin:
China
Brand Name:
wenyou
Certification:
ISO9001, ISO14001, SGS, and UL
Model Number:
9202
Video

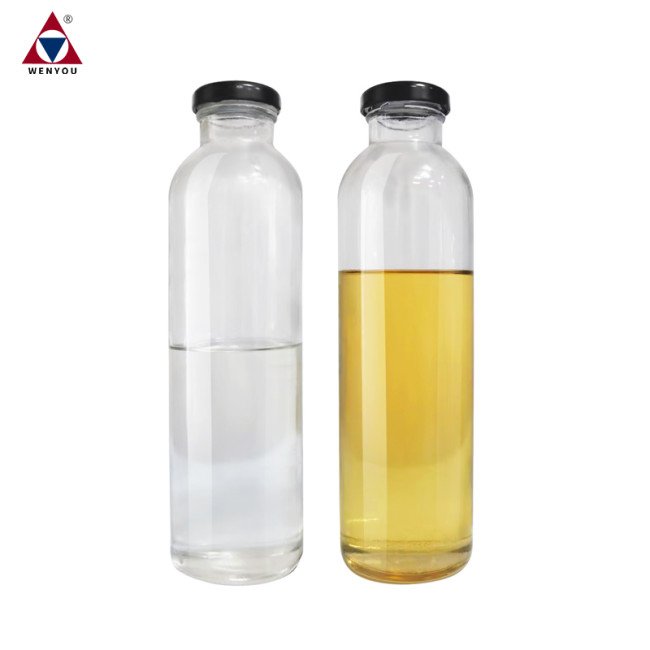

LE-9202 is a liquid solvent-free modified bisphenol A type epoxy resin.
LH-9202 is a liquid modified carboxylic anhydride hardener.
LF-675 is a low-viscosity solvent-free modified polyol.
LZ-622 is a modified tert-butylamine.
Famous insulation material epoxy resin and hardener for insulators, transformer bushings
Indoor electrical insulators for medium and high voltage applications, such as insulators, dry-type transformers, and other insulation products.
Conventional gravity casting process under vacuum.
Automatic pressure gelation process (APG).
Production process is adjustable according to client’s present production methods.
Excellent resistance to thermal shock, superior mechanical and dielectric properties.
Formulation
| Epoxy resin | LE-9202 | 100 pbw |
| Hardener | LH-9202 | 100 pbw |
| Flexibilizer | LF-675 | 0-20 pbw |
| Accelerator | LZ-622 | 0.2-0.8 pbw |
| Filler | Silica powder | 350-480 pbw |
| Color paste | LC series* | 3 pbw |
Advantage

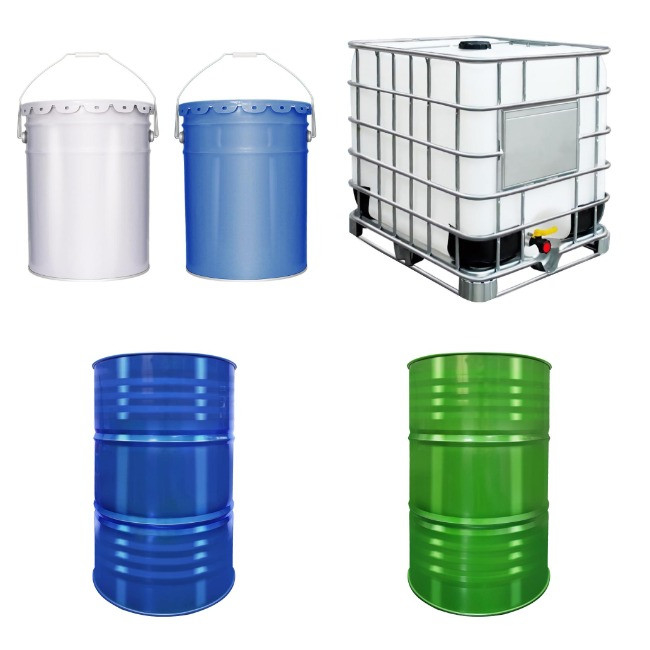

Package Image

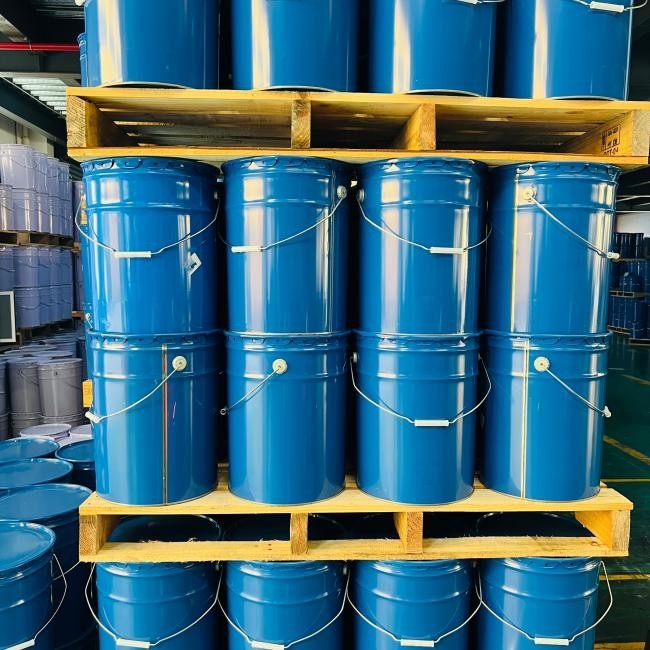

Shipment image

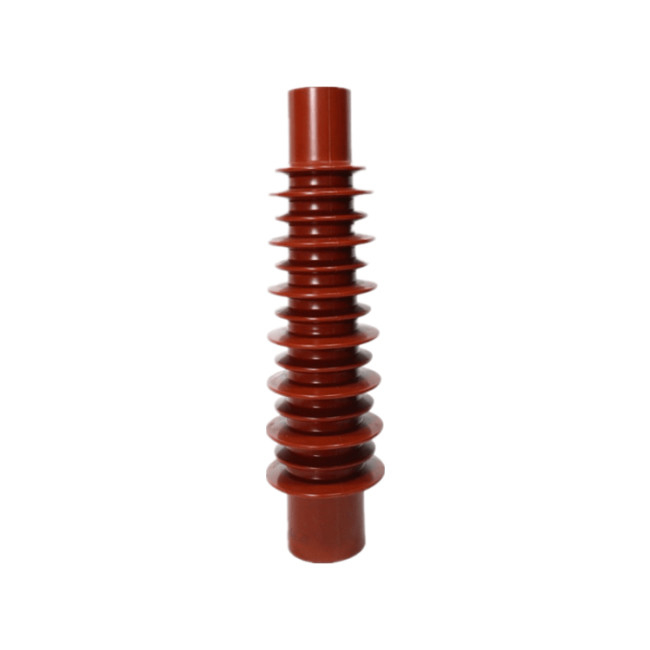

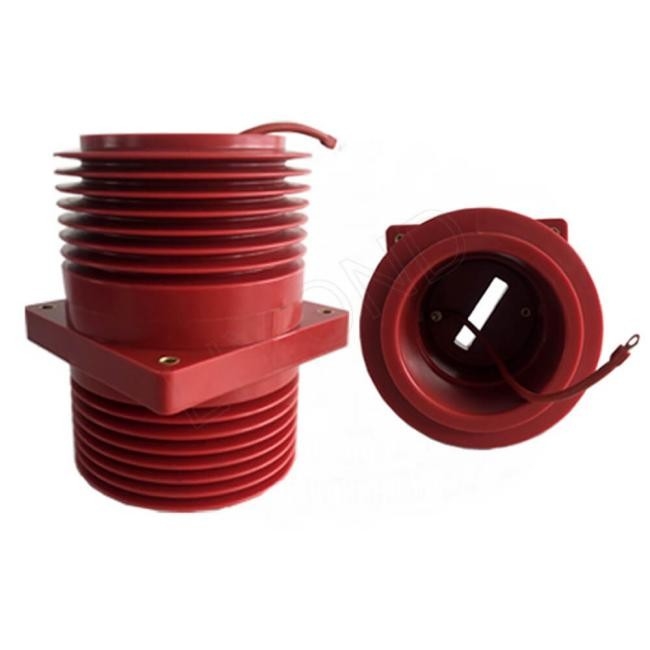

Example application image
