Place of Origin:
China
Brand Name:
wenyou
Certification:
ISO9001, ISO14001, SGS, and UL
Model Number:
9202
LE-9205 is a liquid solvent-free saturated cyclic epoxy resin.
LH-9205 is a liquid modified carboxylic anhydride hardener with an added accelerator.
LF-660 is a low-viscosity solvent-free modified polyol.
LZ-630 is a modified tert-butylamine.
Super dielectric performance epoxy resin compound for making durable insulators
Indoor electrical insulators for medium and high voltage applications, such as insulators, dry-type transformers, and other insulation products.
Conventional gravity casting process under vacuum.
Automatic pressure gelation process (APG).
Production process is adjustable according to client’s present production methods.
Excellent resistance to thermal shock, superior mechanical and dielectric properties.
Formulation
| Epoxy resin | LE-9202 | 100 pbw |
| Hardener | LH-9202 | 100 pbw |
| Flexibilizer | LF-660 | 0-20 pbw |
| Accelerator | LZ-630 | 0.2-1.0 pbw |
| Filler | Silica powder | 350-480 pbw |
| Color paste | LC series* | 3 pbw |
Advantage

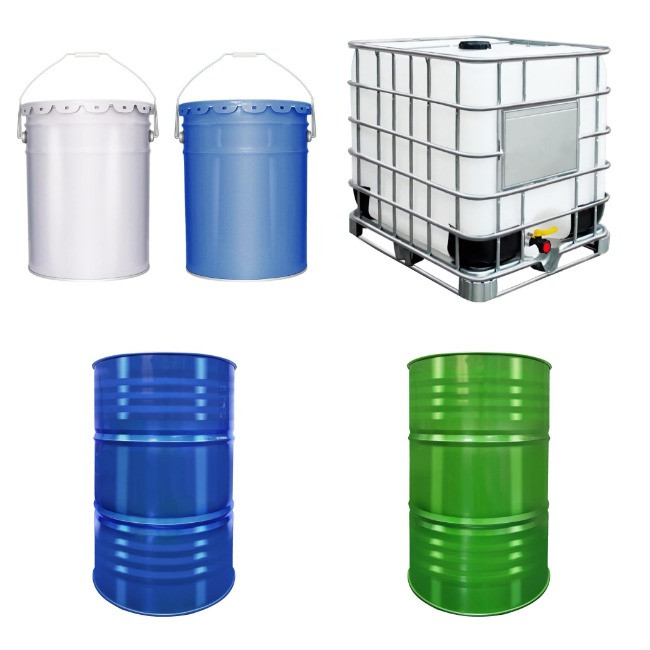

Package Image

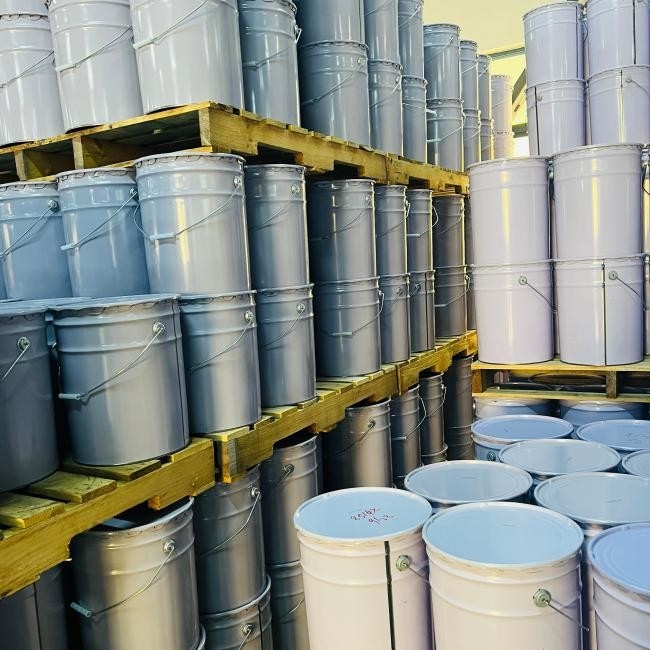

Shipment image
Example application image
