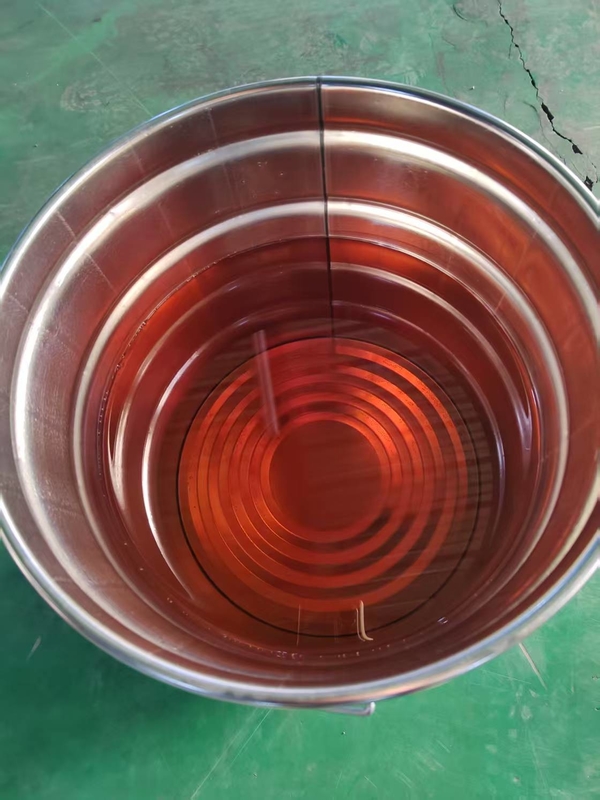

LE-9212/LH-9212 is a low-viscosity, two-component, liquid epoxy resin insulating system. It consists of LE-9212 epoxy resin component and LH-9212 hardener. It is designed for medium to high electrical insulation applications. This epoxy resin system is suitable for conventional vacuum casting or automatic pressure gelation process and exhibits excellent processing, electrical, and mechanical properties.
Electric insulation material high temperature curing epoxy resin for Switchgears
Indoor electrical insulators for medium and high voltage for 12-40.5kV applications.
Conventional gravity casting process under vacuum.
Automatic pressure gelation process (APG).
Production process is adjustable according to client’s present production methods.
High mechanical and dielectric properties.
Very good thermal shock resistance.
| Epoxy resin | LE-9212 | 100 pbw |
| Hardener | LH-9212 | 100 pbw |
| Filler | Silica powder | 300-380 pbw |
| Color paste | LC series* | 3 pbw |
1.What's the usage of your product?
Our product is epoxy resin raw material, for making medium and high voltage electrical power insulation parts, such dry type transformers, potential transformers(PT), current transformers(CT), voltage transformers(VT), insulators, wall bushings, solid sealed pole, insulation covers, etc.
2.What's the MOQ of your product?
MOQ of our product is 20kg pail as sample for a trying.
3.What's the price of your product?
We have developed a series of material system to satisfy various of insulation parts applied to different environment situations. So our price is flexible depends on the material type, current pricing of market, order quantity, price terms, and payment terms.
4.What's the most convenient way to confirm suitable material type for my products?
The best way to confirm is to provide clear photos of your terminal products, and remark its application environment as Indoor or Outdoor? And also remark its producing process as APG or Casting?
